12-position plug with rising cage clamp
The 0395300112 is the 12-circuit member of Molex's Eurostyle ESE 39530 plug line, a free-hanging (in-line) female socket plug with a rising cage clamp termination.

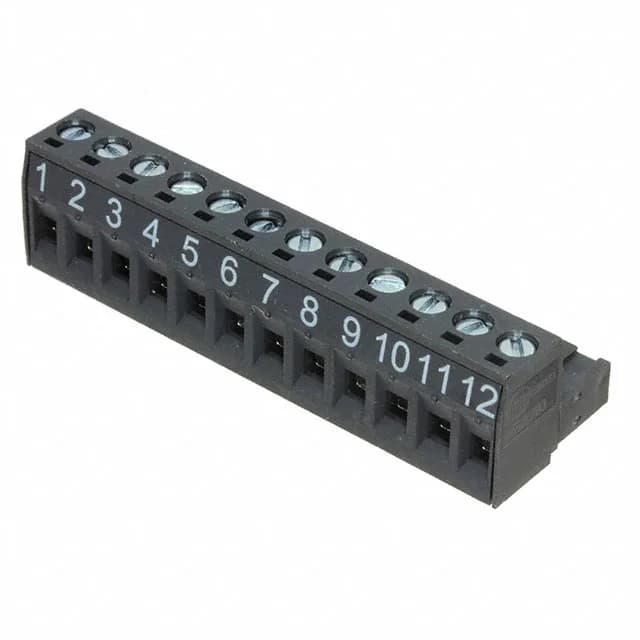

Molex 0395300112 Eurostyle ESE 39530 Plug, 12 Pos, 5.08mm
MPN0395300112
Active
Molex Eurostyle ESE 39530 plug, order code 0395300112, 12 positions, single level, 0.200" (5.08mm) pitch, 15 A, 300 V, tin-plated mating contacts, free hanging (in-line), screw - rising cage clamp termination.
$8.0300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle ESE 39530 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 180° |
| Wire strip length | 5mm |
| Wire gauge or range - AWG | 12-26 AWG |
| Operating temperature | -40°C ~ 115°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.591\" (15.00mm) |
| Pitch | 0.200\" (5.08mm) |
| Features | Positions Stamped, Retention Latches (Non-Wire Side) |
| Package | Bulk |
| Screw size | M3 |
| Manufacturer | Molex |
| Torque - screw | 0.56 Nm (5.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 12 |
| Positions per level | 12 |
| Contact mating finish | Tin |
Product details
Frequently asked questions
What is 0395300112's listed type?
The 0395300112 is a Plug, Female Sockets connector.
What wire gauge range does the 0395300112 accept?
It accepts 12-26 AWG wire with a 5 mm strip length.
