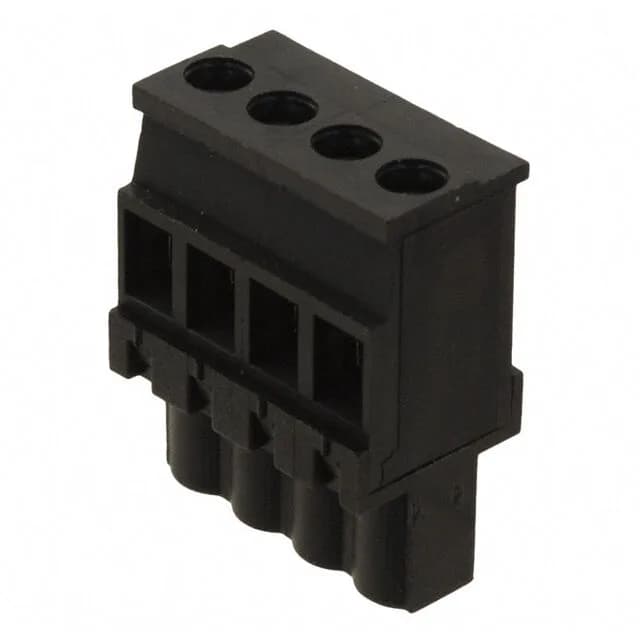

Molex Eurostyle ESE 39533 plug, order code 0395332004, 4 positions, single level, 0.200" (5.08mm) pitch, 15 A, 300 V, tin-plated phosphor bronze contacts, free hanging, screw rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle ESE 39533 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 270° |
| Wire strip length | 5mm |
| Wire gauge or range - AWG | 12-26 AWG |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Insulation height | 1.020\" (25.91mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Features | Retention Latches (Non-Wire Side) |
| Package | Bulk |
| Manufacturer | Molex |
| Torque - screw | 0.56 Nm (5.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
The 0395332004: Wire entry is at 270°, which orients the cable exit parallel to the mating face.
Rated 15 A at 300 V per UL. The single-level 4-position layout keeps the current path short — derate above 105°C ambient per the product drawing. Tin-plated phosphor bronze contacts suit moderate-cycle-count applications where cost per circuit is the driver.
Accepts 12-26 AWG wire with a 5 mm strip length. The screw rising cage clamp secures solid or stranded conductors.
