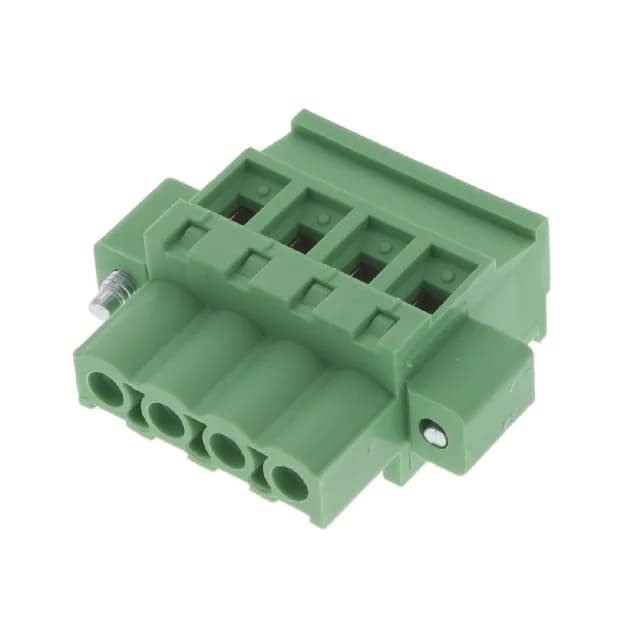

Molex Eurostyle ESE 39537 plug, order code 0395377004, 4 positions, single level, 0.200" (5.08 mm) pitch, 10 A, 300 V, tin-plated mating contacts, free-hanging (in-line), screw - rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle ESE 39537 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Plug wire entry | 270° |
| Wire strip length | 5mm |
| Wire gauge or range - AWG | 12-26 AWG |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Insulation height | 1.020\" (25.91mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Features | Mating Flange, Retention Latches (Non-Wire Side) |
| Package | Bulk |
| Manufacturer | Molex |
| Torque - screw | 0.34 Nm (3.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
The 0395377004 is the 4-circuit member of the Molex Eurostyle ESE 39537 plug line, terminated via a screw - rising cage clamp that accepts 12-26 AWG wire after a 5 mm strip length. Rated 10 A at 300 V with tin-plated phosphor bronze contacts, the plug mounts free-hanging and accepts wire entry at 270° for angled routing in the enclosure.
The 0395377004 is a Plug, Female Sockets type in a green polyamide (PA66) housing.
RoHS and REACH compliance documentation is available from Molex upon request.
