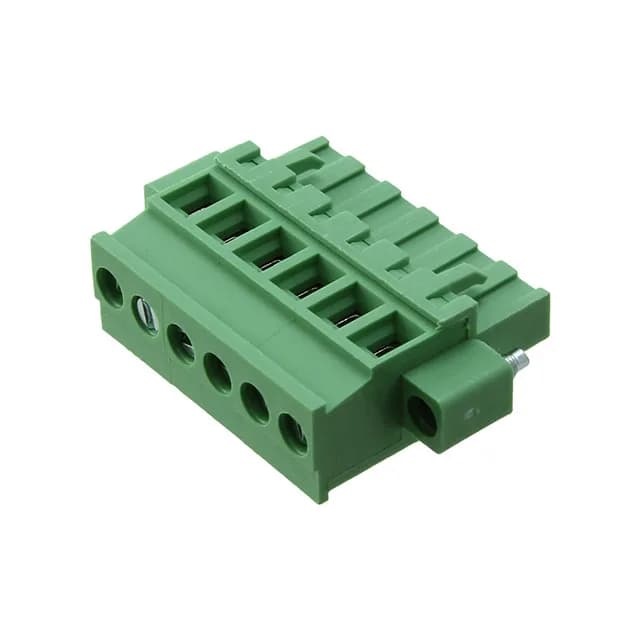

Molex Eurostyle ESE 39537 plug, order code 0395378006, 6 positions, single level, 0.200" (5.08mm) pitch, 10 A, 300 V, tin-plated phosphor bronze contacts, free hanging (in-line), screw - rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle ESE 39537 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Plug wire entry | 90° |
| Wire strip length | 5mm |
| Wire gauge or range - AWG | 12-26 AWG |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Insulation height | 1.020\" (25.91mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Features | Mating Flange, Retention Latches (Wire Side) |
| Package | Bulk |
| Manufacturer | Molex |
| Torque - screw | 0.34 Nm (3.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
The 0395378006 is the 6-circuit member of Molex's Eurostyle ESE 39537 plug line, a free-hanging female socket accepting 12-26 AWG wire. It uses a screw-driven rising cage clamp termination at 0.34 Nm torque, rated 10 A at 300 V with tin-plated phosphor bronze contacts.
