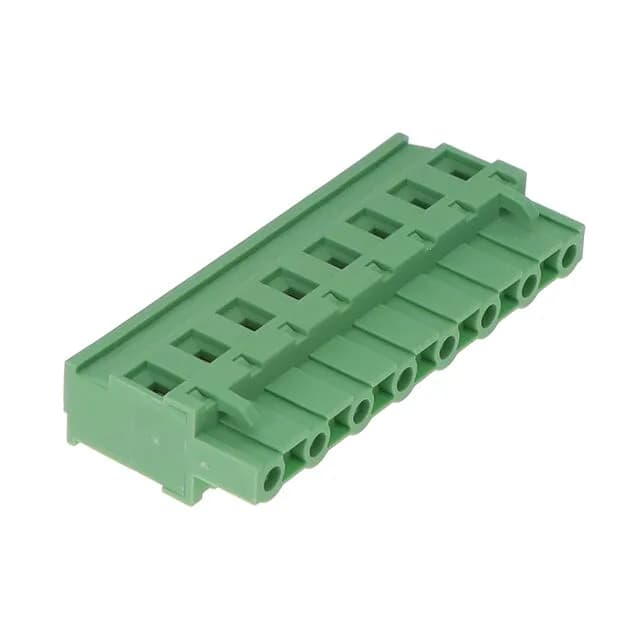

Molex 0397060008
MPN0397060008
Active
$4.7000Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | 39706 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Plug wire entry | 90° |
| Wire strip length | 7mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 1.020\" (25.91mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.300\" (7.62mm) |
| Features | Retention Latches (Wire Side) |
| Package | Bulk |
| Screw size | M3 |
| Manufacturer | Molex |
| Torque - screw | 0.56 Nm (5.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw |
| Positions | 8 |
| Positions per level | 8 |
| Contact mating finish | Tin |
