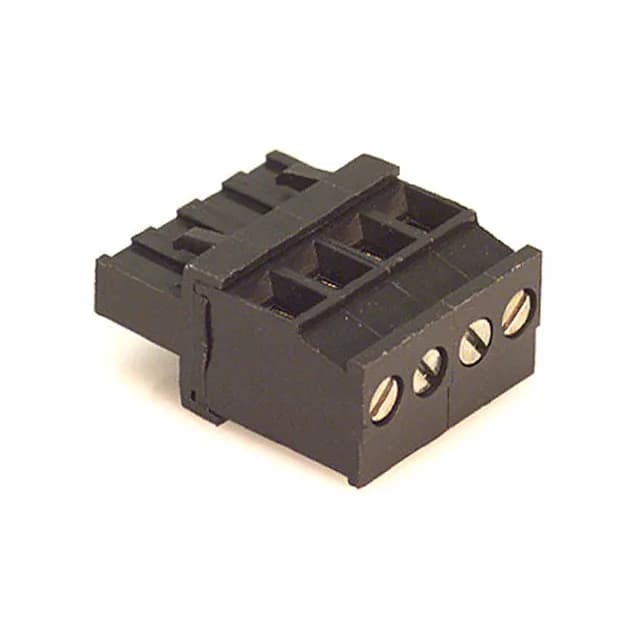

Molex Eurostyle 39860 plug, order code 0398600304, 4 positions, single level, 0.200" (5.08mm) pitch, 15 A, 300 V, tin-plated phosphor bronze contacts, free-hanging, screw rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle 39860 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 90° |
| Wire gauge or range - AWG | 12-26 AWG |
| Operating temperature | 110°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 1.010\" (25.65mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.200\" (5.08mm) |
| Features | Retention Latches (Wire Side) |
| Package | Bulk |
| Screw size | M3 |
| Manufacturer | Molex |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
The 0398600304 is the 4-circuit member of Molex's Eurostyle 39860 plug line — a free-hanging female socket block with screw rising cage clamp termination. Rated 15 A at 300 V with tin-plated phosphor bronze contacts, it accepts 12-26 AWG wire and carries retention latches on the wire side.
The 0398600304 is a Plug, Female Sockets type in Black.
