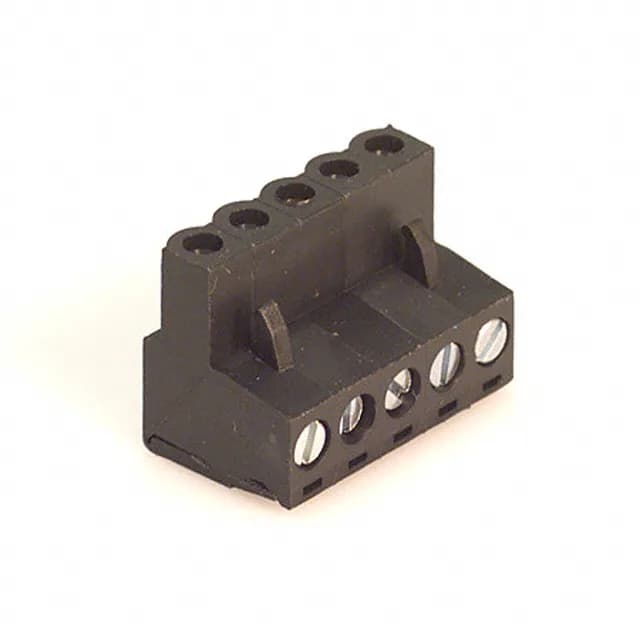

Molex Eurostyle 39870 plug, order code 0398700105, 5 positions, single level, 5.00 mm pitch, 15 A, 300 V, tin-plated phosphor bronze contacts, free hanging, screw rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle 39870 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 12-26 AWG |
| Operating temperature | 110°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic |
| Insulation height | 0.587\" (14.91mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
The 0398700105 is the 5-circuit member of Molex's Eurostyle 39870 plug line, terminated via screw rising cage clamp and rated 15 A at 300 V. It accepts 12-26 AWG wire, uses tin-plated phosphor bronze contacts, and mounts free hanging with 180° wire entry.
Molex lists the 0398700105 as Obsolete.
