Molex KK396, 41671 series, 4-position single-row male pin header, 3.96mm pitch, through-hole solder termination, shrouded 1-wall, friction lock, gold-plated mating contacts, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | KK396, 41671 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.500\" (12.70mm) |
| Insulation material | Polyester |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.172\" (4.37mm) |
| Overall contact length | 0.750\" (19.05mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |

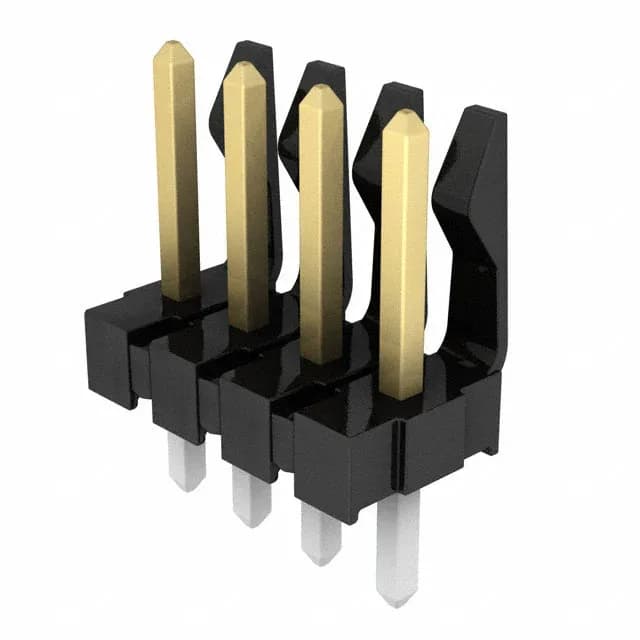

The 0416710003: This is a Molex KK396/41671 series 4-position, single-row male pin header with a 3.96mm pitch. It is a breakaway style, shrouded on one wall, with a friction lock that holds the mating housing in place under vibration. The through-hole solder termination suits wave-solder assembly, and the gold-plated mating contacts (15.0µin) handle repeated mate cycles in automotive, industrial, medical, and telecom equipment.
This header mates with a Molex KK396 crimp receptacle housing (series 41671 or 5051) that accepts the matching crimp terminals. Confirm the circuit count and pitch match your receptacle before ordering.
