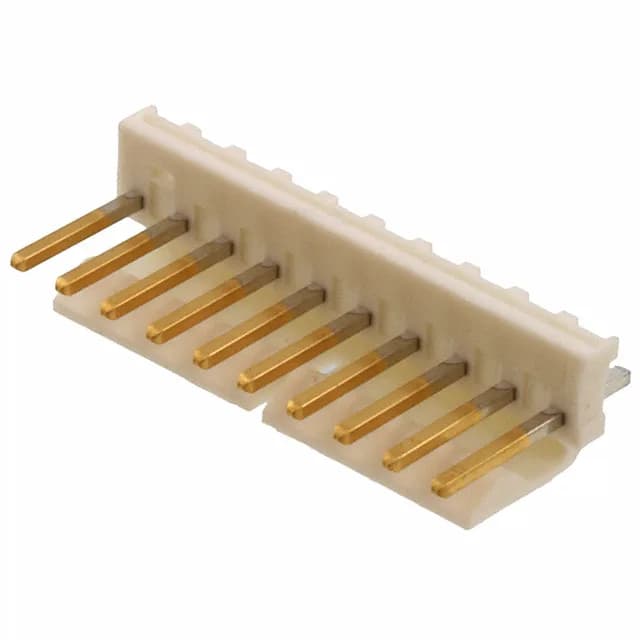

Molex KK396 header, order code 0417910840, 10 positions, single row, 3.96 mm pitch, through-hole, solder termination, gold-plated mating contacts, shrouded with friction lock.
| Parameter | Value |
|---|---|
| Series | KK396, 41791 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Insulation color | Natural |
| Insulation height | 0.446\" (11.33mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.720\" (18.29mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0417910840: The single-row layout and 3.96 mm pitch leave room for trace routing between pads on a standard two-layer board. The 0.446" (11.33 mm) insulation height provides clearance under the shroud for wire dress.
Contact Molex for RoHS/REACH declarations.
