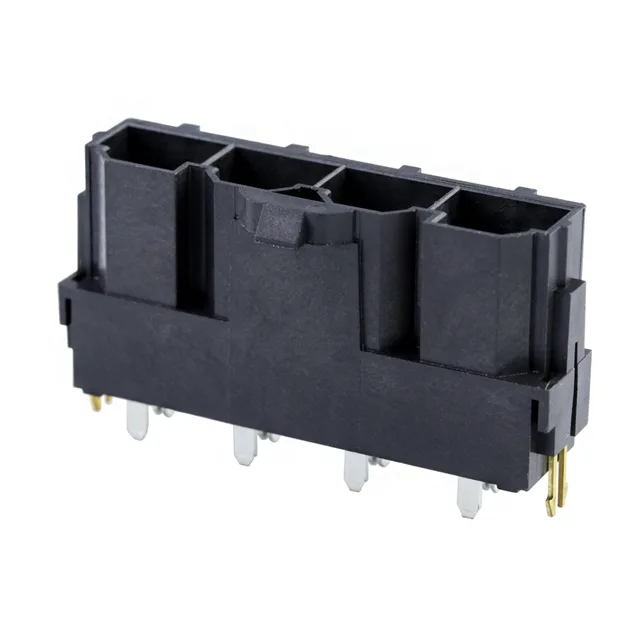

0428194243 — Molex product photo
Molex

Molex Mini-Fit Sr 0428194243 Header, 4-Pos 10.00mm

MPN0428194243
Active

Molex Mini-Fit Sr 42819 header, order code 0428194243, 4 positions, single row, 10.00 mm pitch, gold-plated mating contacts, through-hole, solder termination, shrouded 4-wall, locking ramp, board lock, UL94 V-0.

$5.6617Ref. price · indicative, final on quote
0428194243 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0428194243 Technical Specifications
ParameterValue
SeriesMini-Fit Sr 42819
GenderMale Blade
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Contact materialCopper Zirconium Alloy
Insulation colorBlack
Insulation height0.827\" (21.00mm)
Insulation materialPolyamide (PA46), Nylon 4/6, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
FeaturesBoard Lock
PackageTray
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeRectangular
Rows1
Pitch0.394\" (10.00mm)
Positions4
Contact finish - postTin
Contact length - post0.327\" (8.30mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

4-position power header with board lock

The 0428194243 is the 4-circuit member of Molex's Mini-Fit Sr 42819 single-row header line, carrying a 10.00 mm pitch for power and high-current board-to-wire applications. Gold-plated mating contacts (30.0µin) with tin-plated posts, through-hole solder termination, a shrouded 4-wall housing with locking ramp, and an integral board lock for retention during wave soldering.

Active production, tray packaging

Active lifecycle status — quoted to order against BOM quantity. Ships in tray packaging.

Material and compliance notes

Housing is glass-filled PA46 rated UL94 V-0. Contacts are copper zirconium alloy. Listed for automotive, general purpose, industrial, medical, and telecommunications applications.

Frequently asked questions

What is the mating interface for this header?

Board to Cable/Wire style, shrouded 4-wall with a locking ramp. The 10.00 mm pitch and single-row 4-position layout mate with the matching Mini-Fit Sr receptacle housing and crimp terminals.
