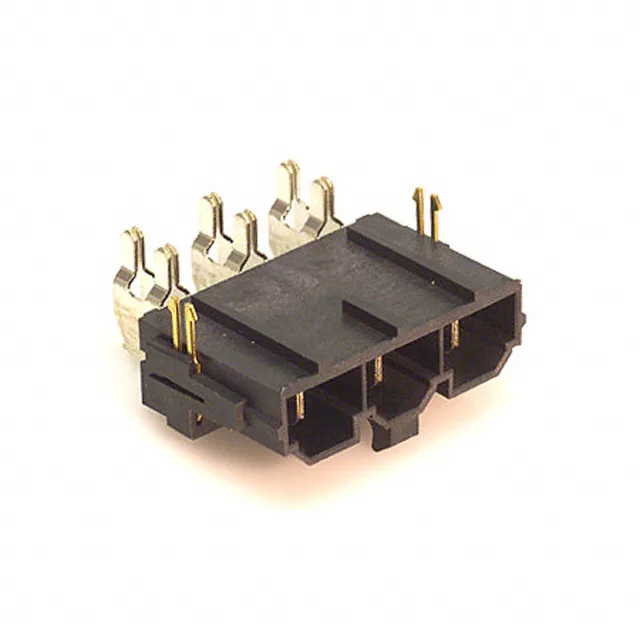

Molex Mini-Fit Sr 42820 header, 3-position, 10.00mm pitch, male blade, right-angle through hole, shrouded 4-wall, board lock, locking ramp, tin-plated contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Mini-Fit Sr 42820 |
| Type | Male Blade |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Copper Zirconium Alloy |
| Insulation color | Black |
| Insulation height | 0.421\" (10.70mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.394\" (10.00mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 0428203212: The male blade contacts are rectangular and made from copper zirconium alloy, a material chosen for high-cycle durability and resistance to stress relaxation under temperature cycling.
The base product number is 042820; the -3212 suffix specifies the 3-position, right-angle, through-hole, tin-plated variant with board lock. No official second source or pin-compatible replacement is listed from Molex.
Molex 0428203212 is sourced to order against your BOM quantity.
The mating pitch is 10.00mm (0.394 inches). This wide spacing supports higher current per contact and simplifies PCB routing compared to finer-pitch headers.
