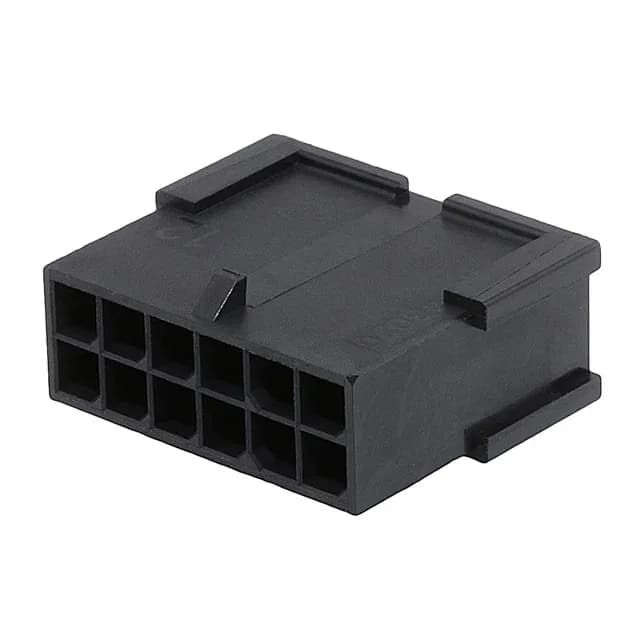

Molex Micro-Fit 3.0 43020 series, 0430201211, 12-position dual-row plug housing, 0.118" (3.00mm) pitch, free-hanging, locking ramp, glow wire compliant, black, contacts not included.
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43020 |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Locking Ramp |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.118\" (3.00mm) |
| Package | Bulk |
| Features | Glow Wire Compliant |
| Row spacing | 0.118\" (3.00mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 12 |
The 0430201211 is a 12-position, dual-row plug housing from the Molex Micro-Fit 3.0 43020 series, on a 0.118" (3.00mm) pitch. The black polyamide (nylon) housing is glow wire compliant, making it suitable for appliance and industrial equipment where flammability resistance is required.
Glow wire compliance means the housing material resists ignition under a glow wire test – a common requirement for white goods, HVAC, and lighting ballasts.
The 0430201211 is a 12-position plug housing; the 0430201201 is a 10-position version. Both are dual-row, 3.00mm pitch, glow wire compliant, and share the same locking ramp and free-hanging design. The position count is the only difference.
Yes – the 0430201211 is glow wire compliant, as listed in its features.
