The Molex 0430202400 is a 24-circuit plug housing from the Micro-Fit 3.0 43020 series, built for wire-to-board and wire-to-wire power interconnect in harness assemblies.
The locking ramp provides an audible click on mate, confirming full engagement.

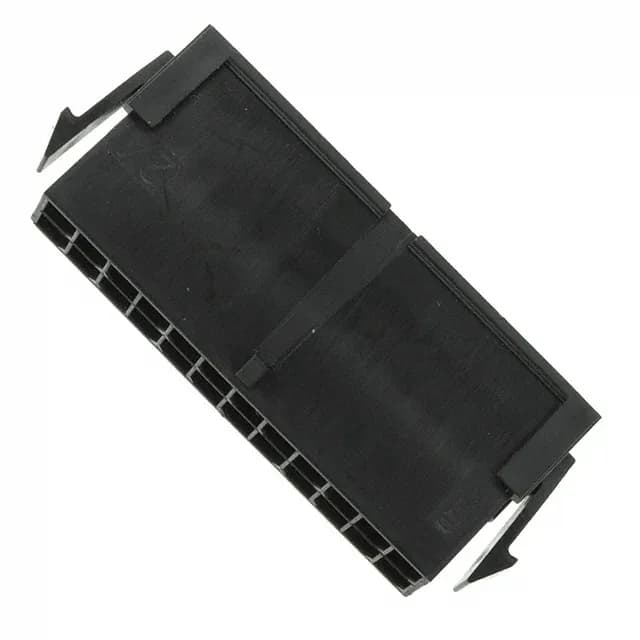

Molex 0430202400 Micro-Fit 3.0 Plug Housing, 24 Pos, 3.00 mm
MPN0430202400
Active
Molex Micro-Fit 3.0 43020 series, plug housing, 24 positions, 2 rows, 0.118" (3.00 mm) pitch, panel mount snap-in, locking ramp, crimp termination, black PA nylon, halogen free.
$2.1000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-Fit 3.0 43020
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43020 |
| Type | Male Pin |
| Mounting | Panel Mount, Snap-In |
| Connector type | Plug |
| Fastening type | Locking Ramp |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon, Halogen Free |
| Note | Contacts Not Included |
| Pitch | 0.118\" (3.00mm) |
| Package | Bulk |
| Row spacing | 0.118\" (3.00mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 24 |
Product details
Frequently asked questions
what is the molex 0430202400 used for
Design engineers need to validate if this housing fits their application
where to buy molex 0430202400 in stock
Buyers need to source the part quickly to avoid production delays
what terminals go with molex 0430202400
Users must select correct contacts to complete the connector assembly
molex 0430202400 datasheet download
Detailed specifications are required for design validation and regulatory compliance
molex 0430202400 price per unit
Cost estimation is critical for budgeting and quoting in procurement
0430202400 equivalent replacement
Sourcing buyers need alternatives if the part is out of stock or discontinued
