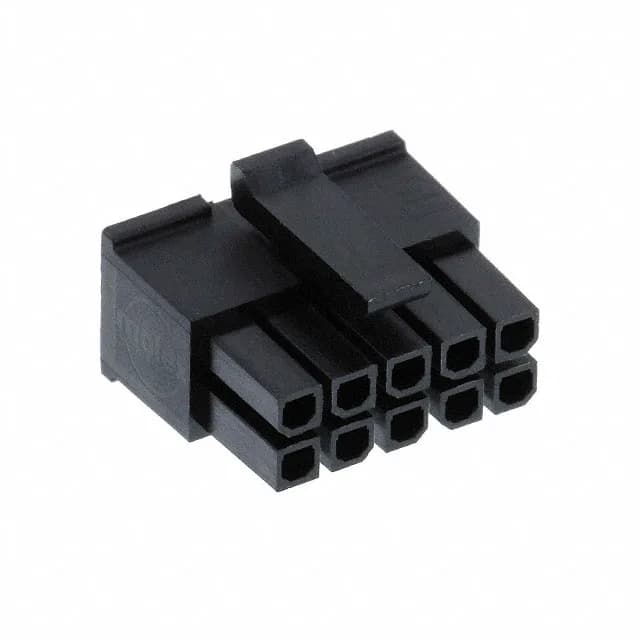

Molex Micro-Fit 3.0 0430251000 receptacle housing, 10 circuits, dual-row, 0.118" (3.00 mm) pitch, free-hanging, latch lock, crimp termination, black PA nylon, -40°C to 105°C, contacts not included.
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43025 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.118\" (3.00mm) |
| Package | Bulk |
| Row spacing | 0.118\" (3.00mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 10 |
The Molex 0430251000 is a 10-circuit, dual-row receptacle housing from the Micro-Fit 3.0 43025 series.
Molex 430450210) is a direct fit. For the female side, use the Micro-Fit 3.0 crimp terminal (Molex 430300001 for 20-24 AWG, tin-plated) or the gold-plated variant for higher mating cycle requirements. The housing accepts the terminal from the rear and the latch retains it; no secondary TPA is used on this version.
The pitch is 0.118" (3.00 mm) on both the row spacing and the contact-to-contact spacing, matching the standard Micro-Fit 3.0 footprint.
