Molex 0430450222 — Pin Headers

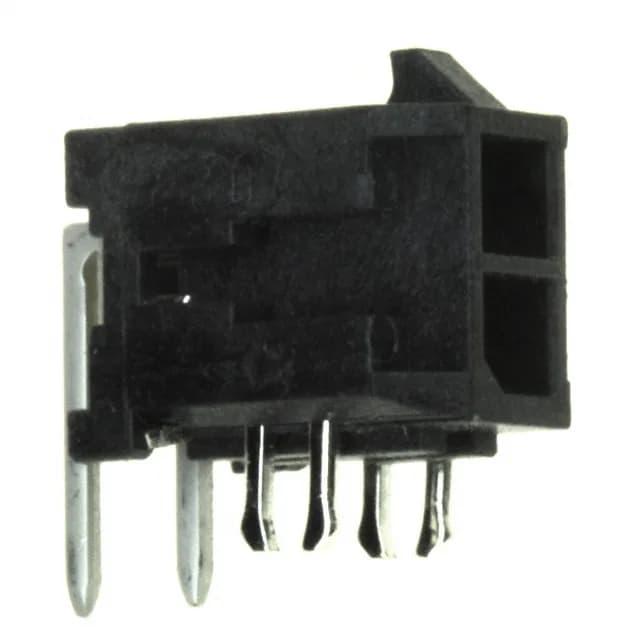

Molex Micro-Fit 3.0 0430450222, 2-Position Right-Angle Header, 8 A

MPN0430450222
Active

Molex Micro-Fit 3.0 43045 right-angle male header, 0430450222, 2 positions, dual-row 3.00 mm pitch, gold-plated mating contacts, 8 A per circuit, 600 V, through-hole, board lock, locking ramp, UL94 V-0.

$1.6600Ref. price · indicative, final on quote
Molex 0430450222 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-Fit 3.0 43045
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0430450222 key specifications
ParameterValue
SeriesMicro-Fit 3.0 43045
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600V
Current rating8A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

0430450222 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows2
Positions2
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The Molex 0430450222 is the 2-position, dual-row member of the Micro-Fit 3.0 43045 series — a right-angle through-hole header with a 3.00 mm pitch. It mates with the matching Micro-Fit 3.0 receptacle housing (sold separately) for board-to-wire power or signal interconnects. The 8 A per circuit rating at 600 V, combined with gold-plated mating contacts (15.0 µin), puts this in the power-distribution class for a 2-position connector — sized for a low-circuit-count DC rail or a fused power feed, not a signal line.

Mating & Termination

Mates with Micro-Fit 3.0 receptacle housings that accept the 2-circuit dual-row layout.

Frequently asked questions

Where can I buy 0430450222 and how is it quoted?

The 0430450222 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding claim is made here.
