Molex 0430450419 — Pin Headers, Sockets & Housings

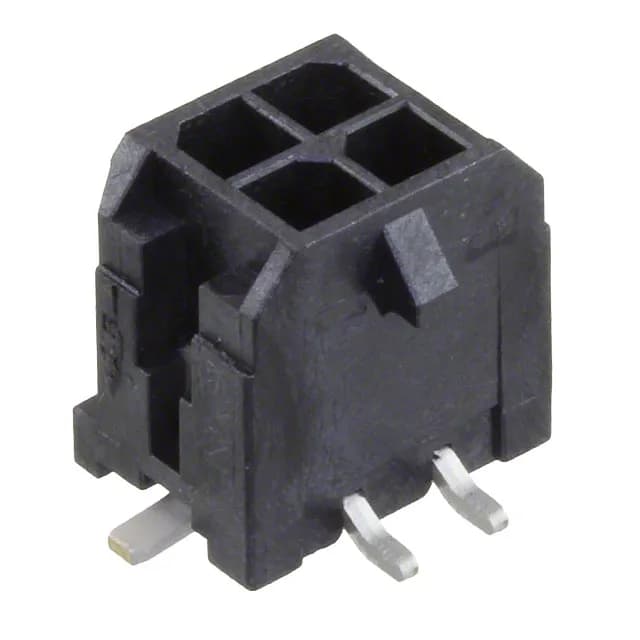

Molex Micro-Fit 3.0 0430450419 Header, 4 Pos, 8 A, Gold

MPN0430450419
Active

Molex Micro-Fit 3.0 43045 series header, 0430450419, 4 circuits, 2 rows, 3.00 mm pitch, SMT, shrouded, locking ramp, gold mating contacts, 8 A, 600 V, UL94 V-0.

$3.4100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

0430450419 key specifications
ParameterValue
SeriesMicro-Fit 3.0 43045
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600V
Current rating8A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.390\" (9.91mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

0430450419 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
FeaturesSolder Retention
PackageTape & Reel (TR) Cut Tape (CT)
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions4
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The Molex 0430450419 is a 4-circuit, dual-row header in the Micro-Fit 3.0 43045 series, designed for board-to-wire power and signal interconnects. The header is surface-mount with solder retention features, shrouded on all four walls, and secures with a locking ramp — a combination that handles vibration in automotive, industrial, and telecom equipment enclosures.

Rated 8 A per circuit at the 600 V mark, with gold plating on the mating side at 15.0 µin (0.38 µm) thickness. Those two specs together mean it can sit inside an industrial cabinet or an engine bay without the housing softening or feeding a fire.

Frequently asked questions

What is the pitch of Molex 0430450419?

The mating pitch is 0.118" (3.00 mm), and the row spacing is the same 0.118" (3.00 mm).

What is the current rating of 0430450419?

It is rated 8 A per circuit at 600 V.
