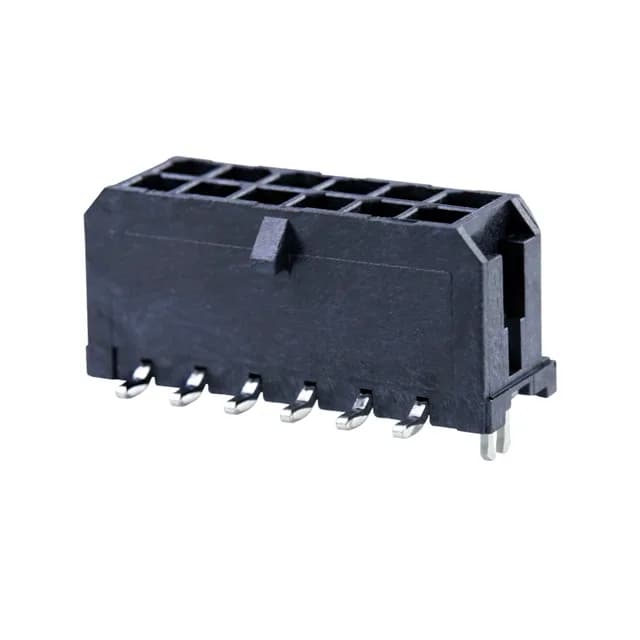

The Molex 0430451217 is a 12-circuit, dual-row SMT header from the Micro-Fit 3.0 43045 series, designed for board-to-wire power interconnects in harness assemblies. Rated for 600 V and -40°C to 105°C operation, with a UL94 V-0 liquid crystal polymer housing, this header suits applications in automotive, general-purpose industrial, medical, and telecommunications equipment where flame rating and a wide temperature range are required.
The board lock is not optional for this SMT header — without it, the shear force from a cable tug during assembly can lift the solder joints. The locking ramp adds a second retention layer: the receptacle latch clicks over the ramp and holds the pair mated under vibration to the connector's rated temperature range.
