Molex Micro-Fit 3.0 43045 series header, 0430451218, SMD, 12 circuits, 2 rows, 3.00mm pitch, shrouded, locking ramp, tin-plated contacts, UL94 V-0 LCP housing.
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43045 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass Alloy |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 60.0µin (1.52µm) |

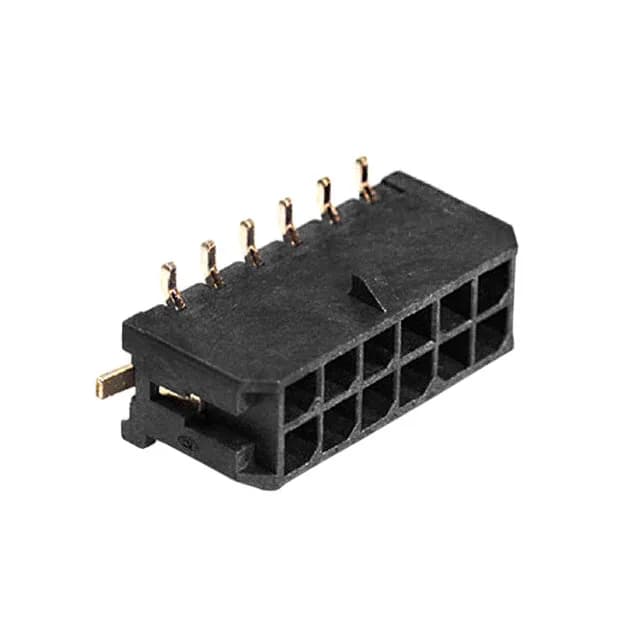

The 0430451218 is a Molex Micro-Fit 3.0 43045 series board-to-cable/wire header, surface-mount, with 12 positions loaded across 2 rows at 3.00 mm pitch.
The mating contacts are tin-plated, 60.0 µinch (1.52 µm) thick, on brass alloy pins.
It is ROHS3 compliant.
