20-Position Dual-Row Right-Angle Header for Wire-to-Board

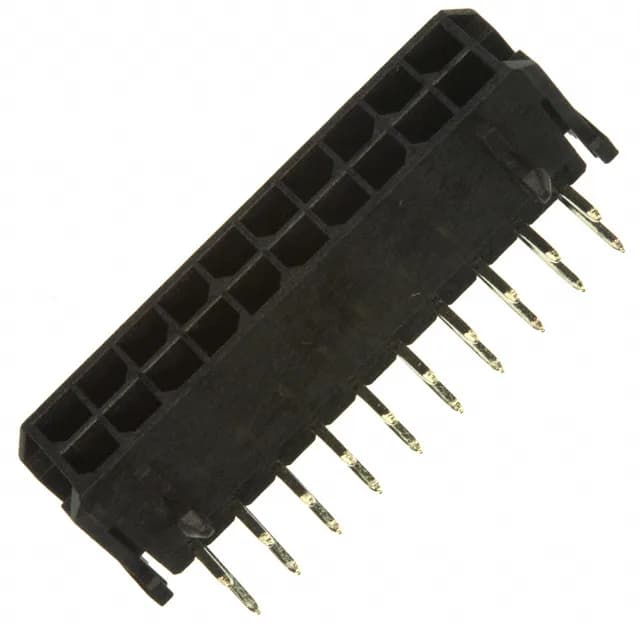

The 0430452001: This Molex Micro-Fit 3.0 43045 header carries 20 circuits in a dual-row layout at 3.00mm pitch — the footprint and circuit count you need to match the BOM position before ordering the mating receptacle. Rated for automotive, general purpose, industrial, medical, and telecommunications applications — the locking ramp and 4-wall shrouding keep the mated pair secure under vibration.
Current Rating and Contact Design
Male pins are square brass alloy with gold on the mating face and 100.0µin tin on the solder tails — the tin finish wets well during wave soldering, while the gold interface maintains low contact resistance over repeated mate cycles.
ROHS3 compliant — the part meets the latest EU restriction-of-hazardous-substances directive for lead, mercury, cadmium, and other substances. No official pin-compatible alternative or successor is listed by Molex for this specific order code. The functional replacement would be another Micro-Fit 3.0 header with the same circuit count and pitch — verify the BOM position count and mating half before committing.
