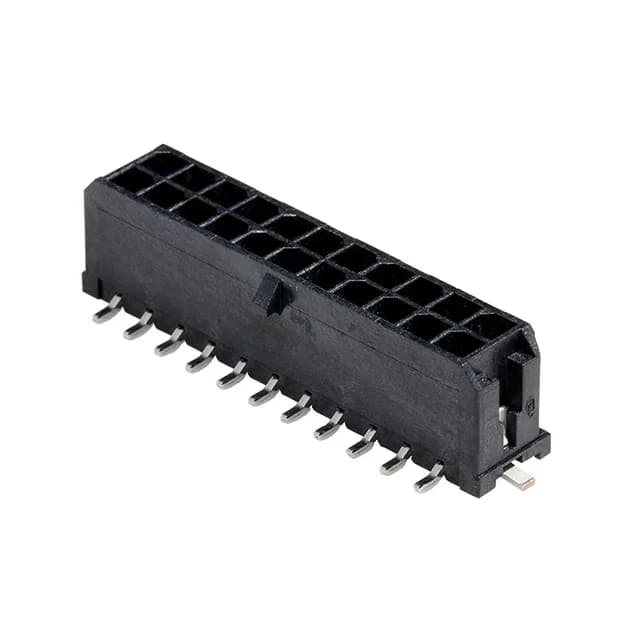

Molex Micro-Fit 3.0 43045 series, 0430452218, board-to-cable/wire header, 22 circuits, 2 rows, 3.00 mm pitch, surface-mount, shrouded, locking ramp, tin-plated contacts, UL94 V-0 LCP housing.
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43045 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass Alloy |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 22 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
The 0430452218: This is a 22-position, dual-row header from the Molex Micro-Fit 3.0 43045 series.
The 3.00 mm row spacing mirrors the pitch, giving a symmetrical 3.00 x 3.00 mm grid for the 22 pin positions. This header mates with the Micro-Fit 3.0 receptacle housing series 43025 (crimp terminals) or the 43645 (pre-wired pigtails).
Available for sourcing against your BOM quantity.
Yes, it is ROHS3 compliant per the lifecycle record.
The mating pitch is 0.118" (3.00 mm), and the row spacing is also 3.00 mm.
