24-Circuit Power Header for Board-to-Wire Harnesses

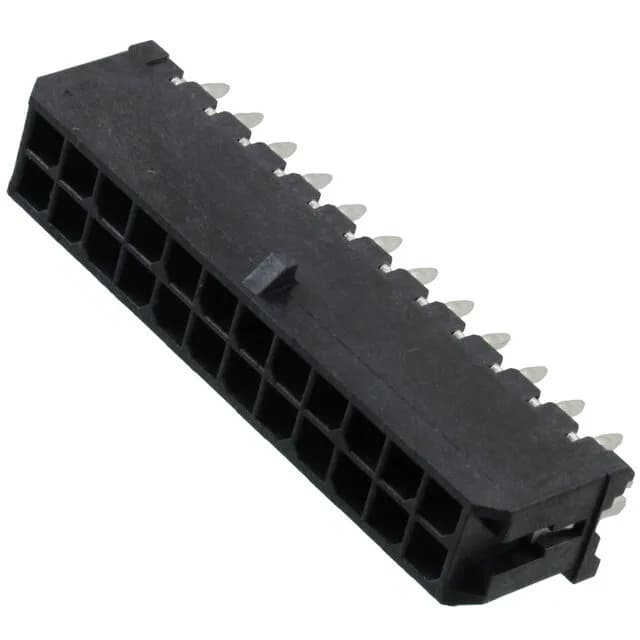

The Molex 0430452424 is a 24-circuit male pin header from the Micro-Fit 3.0 43045 series, designed for board-to-wire power interconnects. It carries 8 A per circuit at a 3.00 mm pitch, which puts it in the power-grade range — sized for distribution rails and motor drives, not just signal lines. Applications listed for this series include automotive, general purpose, industrial, medical, and telecommunications equipment — a broad range that reflects the 600 V voltage rating and the UL94 V-0 glass-filled LCP housing rated for -40°C to 105°C operation.
The through-hole termination uses kinked pins for retention in the plated hole before soldering, with the post length at 0.125" (3.18 mm) for a standard PCB thickness.
