Molex 0432028919

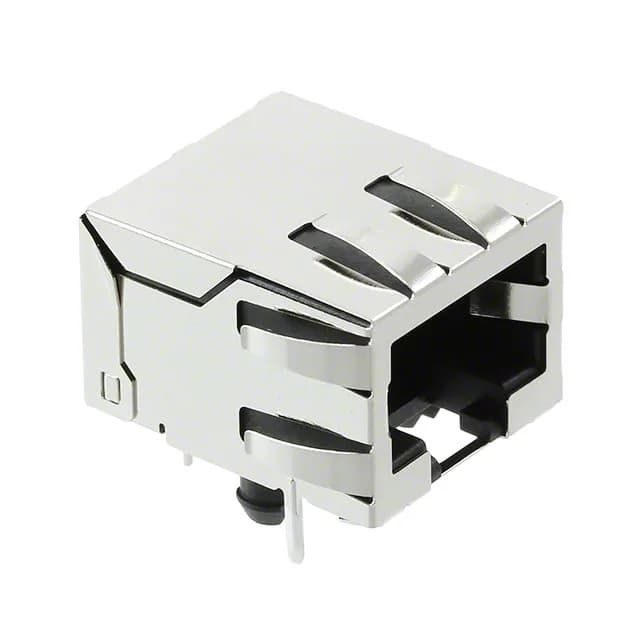

Molex 43202 0432028919, RJ45 Jack 8P8C R/A Shielded

MPN 0432028919
Active

Molex 43202 series, modular jack, 8P8C (RJ45, Ethernet), right-angle through-hole, shielded with EMI finger, Cat3 rated, 50.0µin gold plating, board lock, 1 port, 1 row.

$2.4100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Series43202
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0432028919 key specifications
ParameterValue
Series43202
MountingThrough Hole
Connector typeJack
Operating temperature-40°C ~ 85°C
LED colorDoes Not Contain LED
Contact materialPhosphor Bronze
Housing materialPolyamide (PA), Nylon, Glass Filled
PackageTray
RatingsCat3
FeaturesBoard Lock
ShieldingShielded, EMI Finger
Orientation90° Angle (Right)

All specifications

0432028919 additional specifications
ParameterValue
TerminationSolder
Tab directionDown
Contact finishGold
Rows1
Number of ports1
Contact finish thickness50.0µin (1.27µm)
Number of positions (Contacts)8p8c (RJ45, Ethernet)

Product details

Board-Mount RJ45 Jack, Shielded, Right-Angle

It carries a full shield with an EMI finger for conducted-noise bleed, plus a board lock to anchor the part during wave solder and resist shear from the mating plug.

This jack is rated Cat3, which limits its certified performance to 16 MHz — adequate for 10BASE-T and 100BASE-T4 Ethernet, voice, and low-speed industrial fieldbus. It is not rated for 100BASE-TX (Cat5, 100 MHz) or higher data rates. The 50.0µin (1.27µm) gold plating on the phosphor bronze contacts provides good corrosion resistance and cycle life for field-serviceable equipment, but the Cat3 rating is the ceiling on signal integrity. If your BOM calls for Gigabit Ethernet or PoE+ at higher frequencies, you need a Cat5e or Cat6 jack.

Shielded Build and Board Lock

The shield with integrated EMI finger is the main differentiator from an unshielded 43202 variant. It grounds through the PCB solder pads, bleeding common-mode noise from the cable shield before it reaches the magnetics. For a panel-mounted Ethernet port in a noisy electrical cabinet, the shielding is worth the board-space cost.
