Molex 0436400800 — Connector Housings

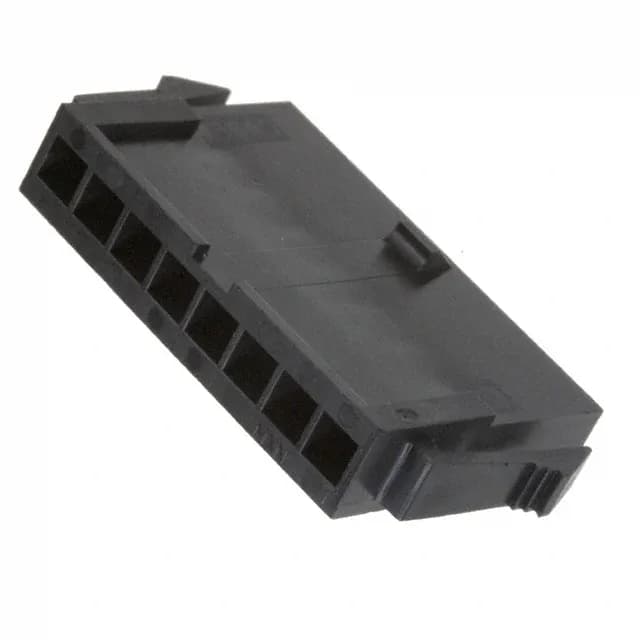

Molex 0436400800 Micro-Fit 3.0 Plug Housing, 8 Pos, 3.00 mm

MPN0436400800
Active

Molex Micro-Fit 3.0 43640 series, 0436400800, 8-position single-row plug housing, 3.00 mm pitch, panel mount snap-in, locking ramp, crimp termination, black PA nylon, -40°C to 105°C.

$0.6500Ref. price · indicative, final on quote
Molex 0436400800 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-Fit 3.0 43640
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0436400800 specifications
ParameterValue
SeriesMicro-Fit 3.0 43640
TypeMale Pin
MountingPanel Mount, Snap-In
Connector typePlug
Fastening typeLocking Ramp
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.118\" (3.00mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions8

Product details

8-Position Plug Housing for Wire-to-Board Harnesses

The Molex 0436400800 is an 8-position, single-row plug housing from the Micro-Fit 3.0 43640 series.

Panel Mount and Termination Details

This plug housing mounts to a panel via snap-in retention, making it suitable for bulkhead or enclosure-wall pass-through applications. The black polyamide (PA) nylon insulation material carries a ROHS3 compliance rating.

Mating and Contact Fit

The mating connector for the 0436400800 plug is the corresponding Micro-Fit 3.0 receptacle housing (series 43025 or 43645). For the crimp terminals, use Molex Micro-Fit 3.0 male pin crimp terminals, series 43030, sized for the wire gauge required by your application.

It is ROHS3 compliant.

Frequently asked questions

What is the mating connector for Molex 0436400800?

Buyers need to pair this plug housing with a matching receptacle or header to complete the connection.

What contacts fit 0436400800?

This housing does not include contacts, so buyers must purchase the correct male pins separately.

Is Molex 0436400800 RoHS compliant?

RoHS compliance is often a regulatory requirement for electronic assemblies.

Where can I buy 0436400800 in stock?

Availability directly affects procurement timelines and project schedules.

How many positions does 0436400800 have?

The number of circuits must match the wiring requirement of the application.

What is the pitch of Molex 0436400800?

Pitch determines compatibility with the mating connector and PCB layout.
