Molex Micro-Fit 3.0 43645 series receptacle, 3 circuits, 1 row, 0.118" (3.00mm) pitch, free hanging (in-line), crimp termination, female socket contacts, latch lock, black nylon housing, bulk.
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43645 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.118\" (3.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 3 |

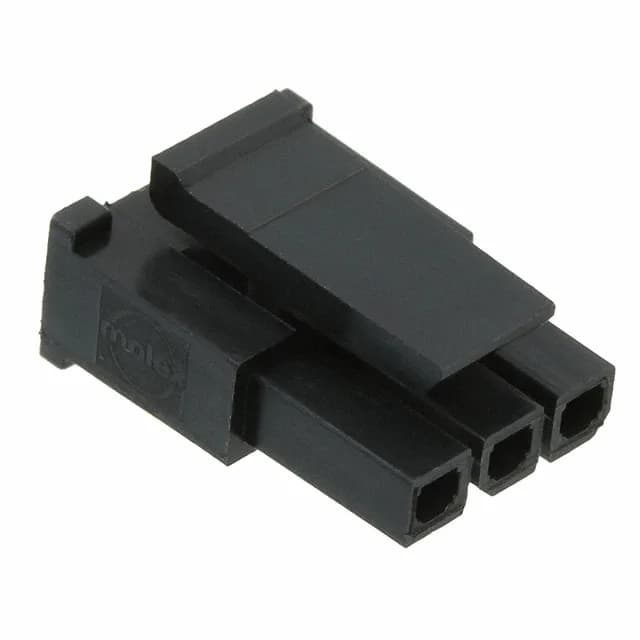

The Molex 0436450308 is a 3-circuit receptacle housing from the Micro-Fit 3.0 43645 series, designed for free-hanging in-line wire-to-wire or wire-to-board harness applications.
Termination is crimp-style: the user selects the appropriate female terminal (e.g., Molex 43030 series for 20-24 AWG wire) and crimps it onto the wire before inserting into the housing.
The exact header order code depends on mounting style (through-hole, surface-mount, vertical, right-angle) and board retention features. Confirm the header's position count and pitch match this receptacle before ordering.
This part is sourced per RFQ.
