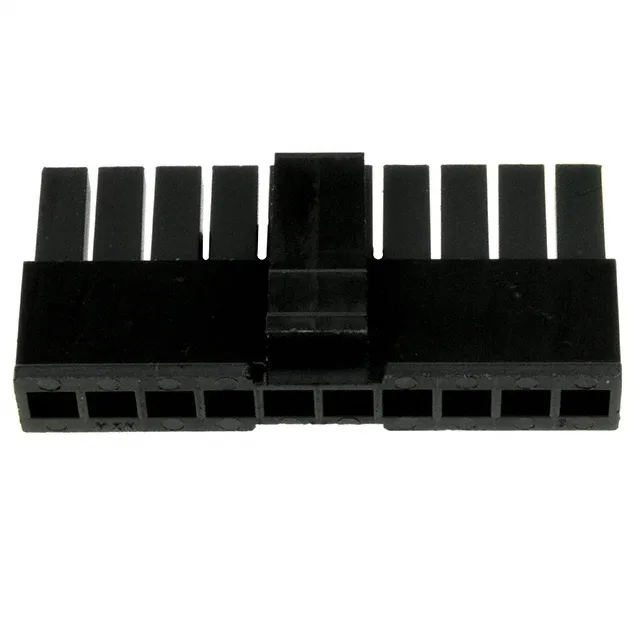

0436451000 — Molex product photo

Molex Micro-Fit 3.0 0436451000 Receptacle, 10 Circuit

MPN0436451000
Active

Molex Micro-Fit 3.0 43645 series receptacle, 10 circuits, 1 row, 0.118" (3.00 mm) pitch, free-hanging, latch lock, crimp termination, black polyester housing, contacts not included.

$0.6800Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

0436451000 Technical Specifications
ParameterValue
SeriesMicro-Fit 3.0 43645
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolyester
NoteContacts Not Included
Pitch0.118\" (3.00mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions10

Product details

The Molex 0436451000 is a 10-circuit, single-row receptacle housing from the Micro-Fit 3.0 43645 series.

The Contacts Trap — Order Separately

You'll need the Micro-Fit 3.0 female crimp terminal (Molex order code 430300001 for 20-24 AWG, or the tin-plated variant 430300007) to populate the 10 cavities. The crimp termination means you're building a custom harness length, not buying a pre-terminated cable assembly. If the BOM line only lists this housing, the build stops at the crimp press until the terminals arrive.

Mating Half and Latch Lock

The mating connector is a Micro-Fit 3.0 pin header — typically the 43045 series vertical or right-angle headers with 0.118" (3.00 mm) pitch and 10 circuits. The latch lock on this receptacle clicks onto the header's locking ramp, giving positive retention against vibration. For a free-hanging harness, the latch is what keeps the pair mated when the cable gets tugged; without it, the contacts would back out of the header pins over time in a moving assembly.

Frequently asked questions

Does 0436451000 include contacts?

No — the 'Contacts Not Included' note means the female crimp terminals must be ordered separately as a different line item on the BOM.

What is the pitch of 0436451000?

The pitch is 0.118" (3.00 mm), which is the standard Micro-Fit 3.0 spacing — match it to the corresponding header's pitch for the board footprint.
