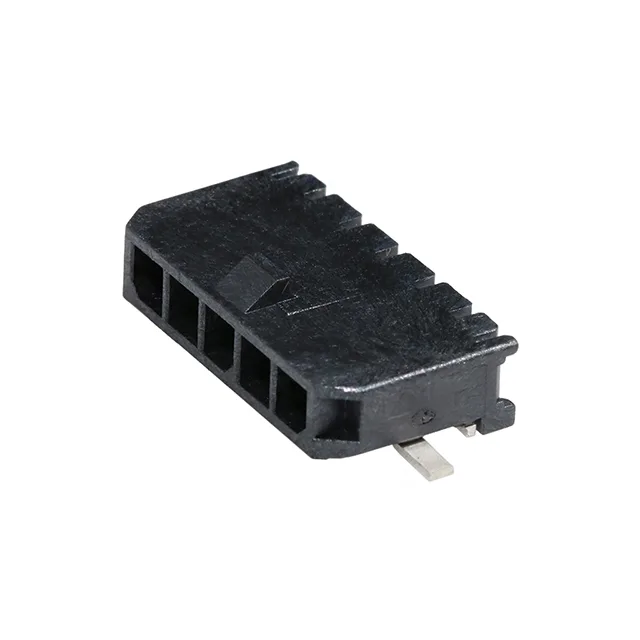

Molex Micro-Fit 3.0 header, order code 0436500514, 5 positions, single row, 0.118" (3.00mm) pitch, gold-plated mating contacts, surface-mount right-angle, solder termination, locking ramp.
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43650 |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.172\" (4.37mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Parameter | Value |
|---|---|
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0436500514 is the 5-circuit member of Molex's Micro-Fit 3.0 43650 header line, a shrouded single-row board-to-wire connector. It mounts surface-mount right-angle with solder termination, carries gold-plated mating contacts, and includes a locking ramp for positive retention.
The style is Board to Cable/Wire and the series is Micro-Fit 3.0 43650.
