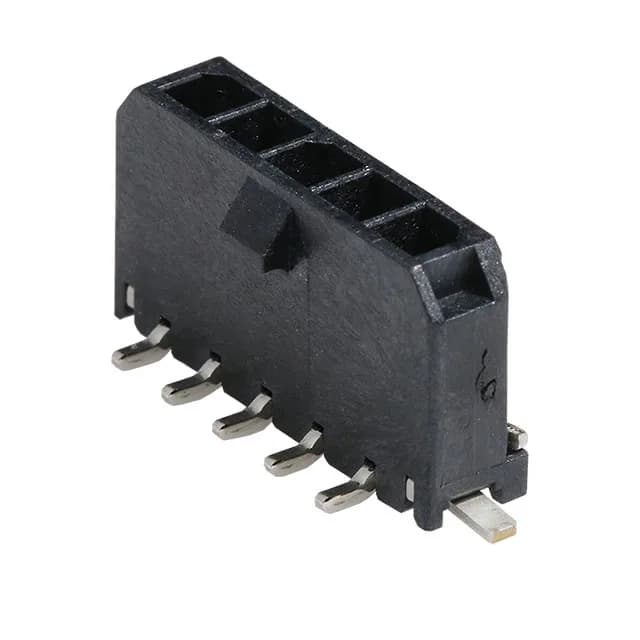

Molex Micro-Fit 3.0 header, order code 0436500526, 5 positions, single row, 3.00 mm pitch, gold-plated mating contacts, surface-mount, solder termination, locking ramp.
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43650 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Mated stacking heights | 17.56mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Features | Solder Retention |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0436500526 is the 5-circuit member of Molex's Micro-Fit 3.0 43650 series, a shrouded single-row header for board-to-cable/wire applications. It carries gold-plated mating contacts, mounts surface-mount with solder termination, and uses a locking ramp for retention.
No pin-compatible alternative is recorded for this part. The 0436500526 is the only 5-position single-row Micro-Fit 3.0 header in the 43650 series with the listed pitch and plating.
