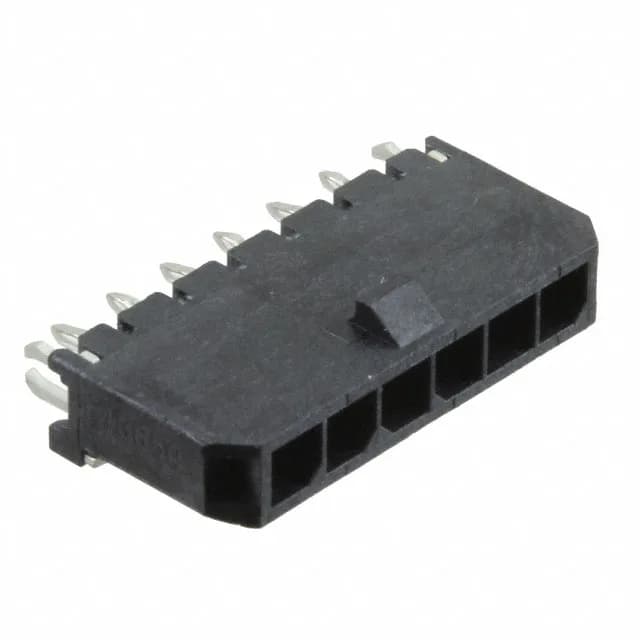

Molex 0436500618 Micro-Fit 3.0 Header, 6 Pos, 3mm Pitch

MPN0436500618
Active

Molex Micro-Fit 3.0 43650 series, 0436500618, vertical through-hole header, 6 positions, single row, 3.00 mm pitch, shrouded 4-wall, locking ramp, board lock, tin-plated contacts, UL94 V-0, tray.

$1.2700Ref. price · indicative, final on quote
Molex 0436500618 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-Fit 3.0 43650
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0436500618 key specifications
ParameterValue
SeriesMicro-Fit 3.0 43650
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Contact materialBrass
Insulation colorBlack
Insulation height0.390\" (9.91mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled
Mated stacking heights17.56mm
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire

All specifications

0436500618 additional specifications
ParameterValue
PackageTray
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationKinked Pin, Solder
ApplicationsGeneral Purpose, Medical, Military, Telecommunications
Contact shapeSquare
Rows1
Pitch0.118\" (3.00mm)
Positions6
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Contact finish - matingTin
Contact finish thickness - mating100.0µin (2.54µm)

Product details

6-Pin, 3 mm Pitch, Locking Ramp — What This Header Does

The 17.56 mm mated stack height sets the z-height budget inside the enclosure, so check clearance to adjacent components or the cover.

Within the Micro-Fit 3.0 43650 family, the 0436500618 (6 positions, board lock) has two direct peers: 436500618 shares identical specs including the board lock, while 436500615 swaps the board lock for a board guide — a consideration if your PCB has locating holes instead of relying on solder-tail anchoring. For fewer circuits, 436500318 offers the same features in a 3-position version.

Frequently asked questions

What is the mating connector for Molex 0436500618?

The mating half is a Micro-Fit 3.0 receptacle housing (e.g., Molex 43645 series) that accepts the corresponding crimp terminals. The header's 6-position, single-row, 3.00 mm pitch and locking ramp are designed to mate with that receptacle family.

What is the pinout of Molex 0436500618?

This is a single-row, 6-position header with all positions loaded. Pin 1 is typically identified by a chamfer or marking on the shroud; the remaining pins follow sequentially. The square male pins are arranged in a straight line at 3.00 mm pitch. For exact pin numbering, refer to the Molex product drawing for the 43650 series.

Is Molex 0436500618 RoHS compliant?

Yes, it is ROHS3 Compliant, meeting the latest RoHS directive requirements.

Where can I buy Molex 0436500618?

Availability and current pricing confirmed at quote time.
