Board-to-wire power header, 6 circuits
The 0436500627 is the 6-circuit member of Molex's Micro-Fit 3.0 43650 header line, a shrouded single-row board-to-wire header with a locking ramp for positive retention.

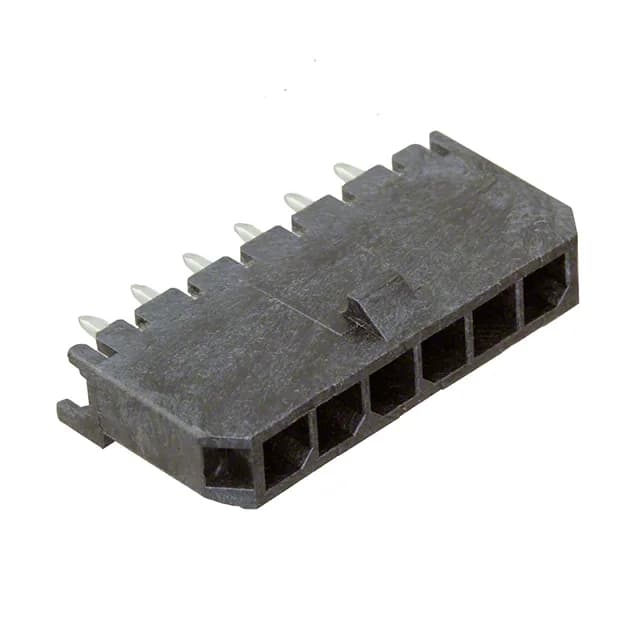

Molex 0436500627 Micro-Fit 3.0 Header, 6 Pos 3.00mm
MPN0436500627
Active
Molex Micro-Fit 3.0 43650 header, order code 0436500627, 6 positions, single row, 3.00 mm pitch, tin-plated mating contacts, through-hole, solder termination, locking ramp.
$2.0900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43650 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Mated stacking heights | 17.56mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
