This header mates with Micro-Fit 3.0 receptacle housings (e.g., 43645 series) using the corresponding crimp terminals. The single-row, 7-circuit layout is keyed by the housing geometry — the locking ramp and shroud ensure the plug only goes in one way. The series covers 2–24 circuits in single and dual rows; this 7-position member is a common count for power and signal distribution in telecom, medical, and military equipment.

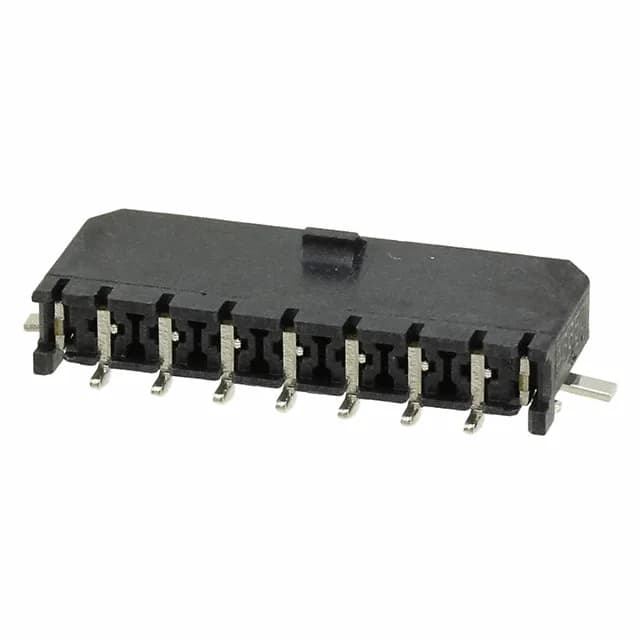

Molex 0436500712 Micro-Fit 3.0 Header, 7-Pin, 3 mm
MPN0436500712
Active
Molex Micro-Fit 3.0 43650 series, 7-position single-row header, 3.00 mm pitch, surface-mount right-angle, tin-plated male pins, shrouded with locking ramp, UL94 V-0 housing.
$2.7927Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-Fit 3.0 43650
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43650 |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.172\" (4.37mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
All specifications
| Parameter | Value |
|---|---|
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
Product details
Frequently asked questions
Where can I buy Molex 0436500712 and how do I get a price?
0436500712 is sourced to order through our distribution channel. Submit an RFQ with your target quantity and we will confirm availability and current pricing — no stock-holding claim, sourced per request.
What is the mating female connector for 0436500712?
This header mates with a Micro-Fit 3.0 single-row receptacle housing, such as the 43645 series, using the matching crimp terminals. Confirm the circuit count and keying before ordering.
