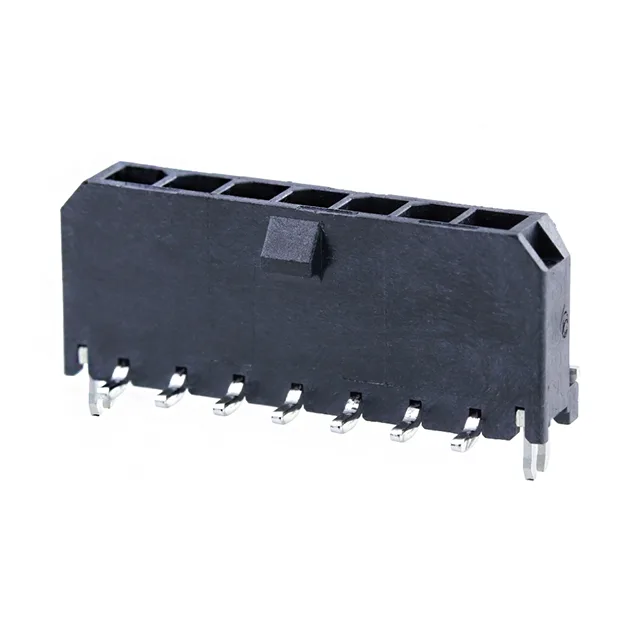

Molex Micro-Fit 3.0 43650 header, order code 0436500721, 7 positions, single row, 0.118" (3.00mm) pitch, tin-plated mating contacts, shrouded - 4 wall, board lock, surface-mount, solder termination, Tape & Reel.
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43650 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Mated stacking heights | 17.56mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Package | Tape & Reel (TR) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 0436500721 is the 7-circuit member of Molex's Micro-Fit 3.0 43650 header line, a shrouded single-row board-to-wire header with a 0.118" (3.00mm) mating pitch.
The 0436500721 mates with a Micro-Fit 3.0 receptacle at a mated stacking height of 17.56mm. The 4-wall shrouding and locking ramp protect the pins and resist vibration-induced disconnection.
0436500721 is available to order.
The style is Board to Cable/Wire; the series is Micro-Fit 3.0 43650.
