Molex Micro-Fit 3.0 43650 series header, 0436500804, 8 circuits, 3.00mm pitch, right-angle through-hole, shrouded 4-wall, gold-plated male pins, locking ramp, board lock, UL94 V-0 LCP housing.
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43650 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.172\" (4.37mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |

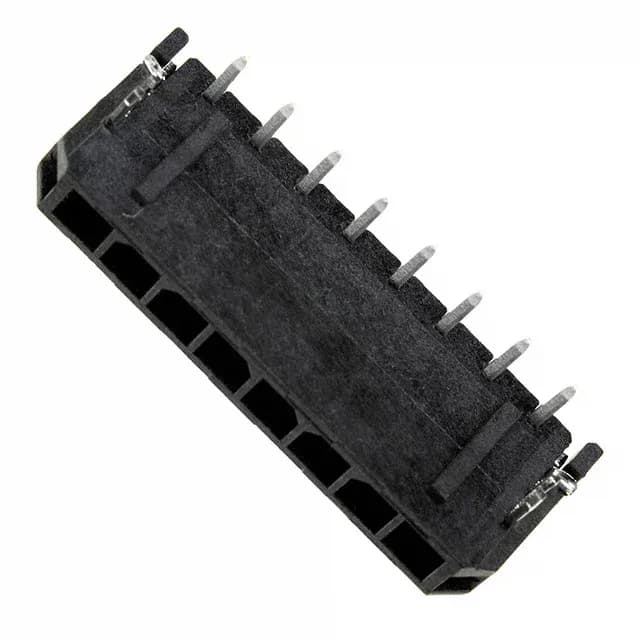

This is a Molex Micro-Fit 3.0 43650 series header, order code 0436500804, with 8 positions on a single row at 3.00mm pitch.
The right-angle solder tails measure 0.125" (3.18mm) long, fitting standard 1.6mm-thick PCBs with enough protrusion for a reliable fillet. The square male pins (0.040" side) provide a consistent contact interface for the receptacle's dual-beam terminals.
