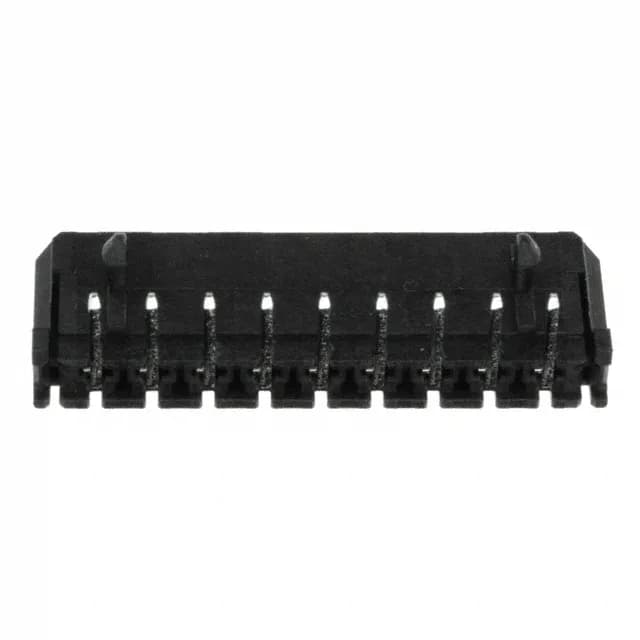

0436500900 Molex Micro-Fit 3.0 Header, 9 Pos, 3mm Pitch

MPN0436500900
Active

Molex Micro-Fit 3.0 43650 series, 0436500900, board-to-cable/wire header, 9 circuits, 3.00mm pitch, right-angle through-hole, shrouded 4-wall, locking ramp, tin-plated contacts, UL94 V-0 LCP housing.

$2.7300Ref. price · indicative, final on quote
Molex 0436500900 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-Fit 3.0 43650
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0436500900 key specifications
ParameterValue
SeriesMicro-Fit 3.0 43650
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Contact materialBrass
Insulation colorBlack
Insulation height0.172\" (4.37mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray

All specifications

0436500900 additional specifications
ParameterValue
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Medical, Military, Telecommunications
Contact shapeSquare
Rows1
Pitch0.118\" (3.00mm)
Positions9
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Contact finish - matingTin
Contact finish thickness - mating60.0µin (1.52µm)

Product details

Board Layout and Fit for a 9-Circuit Micro-Fit 3.0 Header

The 0436500900: In a vibration environment, that latch keeps the pair mated without relying on the contact friction alone.

What the Contact Plating and Current Path Tell You

The brass base material carries the current; the tin layer controls oxidation at the interface. The insulation height of 0.172" (4.37 mm) sets the shroud profile above the board.

Sourcing and Lifecycle Position

The base product number is 043650 — this 9-position variant is one of several position counts in the same series.

Housing Material and Application Range

The housing is molded from liquid crystal polymer (LCP) with glass fill, rated UL94 V-0.
