Molex 0436501010 — Pin Headers

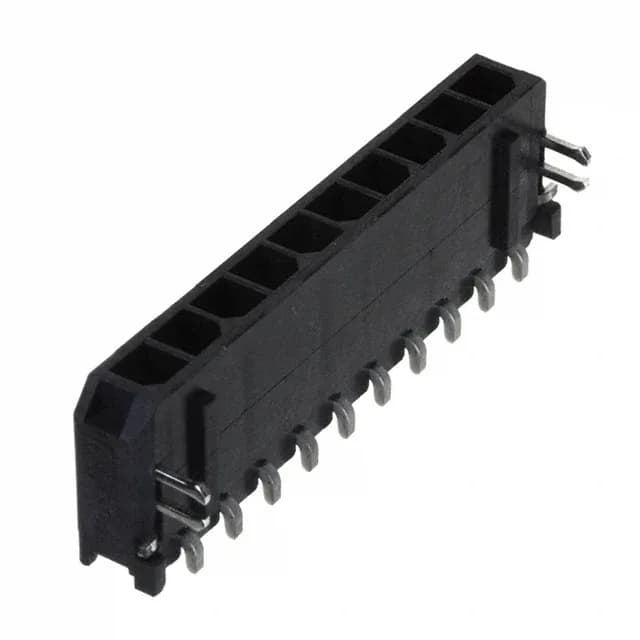

Molex 0436501010 Micro-Fit 3.0 Header, 10 Pos

MPN0436501010
Active

Molex Micro-Fit 3.0 43650 series header, 0436501010, 10-position single-row, SMT right-angle, 3.00 mm pitch, gold-plated mating contacts, board lock, UL94 V-0 LCP housing.

$3.0967Ref. price · indicative, final on quote
Molex 0436501010 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-Fit 3.0 43650
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0436501010 key specifications
ParameterValue
SeriesMicro-Fit 3.0 43650
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Contact materialBrass
Insulation colorBlack
Insulation height0.172\" (4.37mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)

All specifications

0436501010 additional specifications
ParameterValue
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Medical, Military, Telecommunications
Contact shapeSquare
Rows1
Pitch0.118\" (3.00mm)
Positions10
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

10-Position Right-Angle SMT Header for Wire-to-Board

The 0436501010: Applications span general purpose, medical, military, and telecommunications equipment, per the series listing.

Contact Plating and Mating Interface

Mating contacts carry 15.0 µinch (0.38 µm) gold over the base metal, with tin-plated posts (100.0 µinch / 2.54 µm) for solder termination. Contact material is brass, square pin shape, and all 10 positions are loaded.

Board Retention and Housing Construction

The part is ROHS3 compliant.

This header mates with a Micro-Fit 3.0 receptacle housing (e.g., Molex 043650 series) that accepts crimp terminals for 20–24 AWG wire. Termination is solder — the right-angle SMT tails reflow onto the board pads. The board lock provides additional mechanical hold during the solder process.

Frequently asked questions

What is the mating connector for Molex 0436501010?

This header mates with a Micro-Fit 3.0 receptacle housing (part of the same 43650 series) that accepts crimp terminals. The receptacle uses a locking ramp to match the header's latch.

Is Molex 0436501010 RoHS compliant?

Yes, the 0436501010 is ROHS3 compliant per the manufacturer's listing.

What is the difference between Molex 0436501010 and 0436501012?

The 0436501010 is a 10-position single-row header; the 0436501012 is a 12-position variant. Both share the same 3.00 mm pitch, SMT right-angle orientation, and Micro-Fit 3.0 series features. The difference is the circuit count — choose based on your BOM position requirement.
