3.00 mm Pitch, 10 Positions — the BOM-Fit Anchor

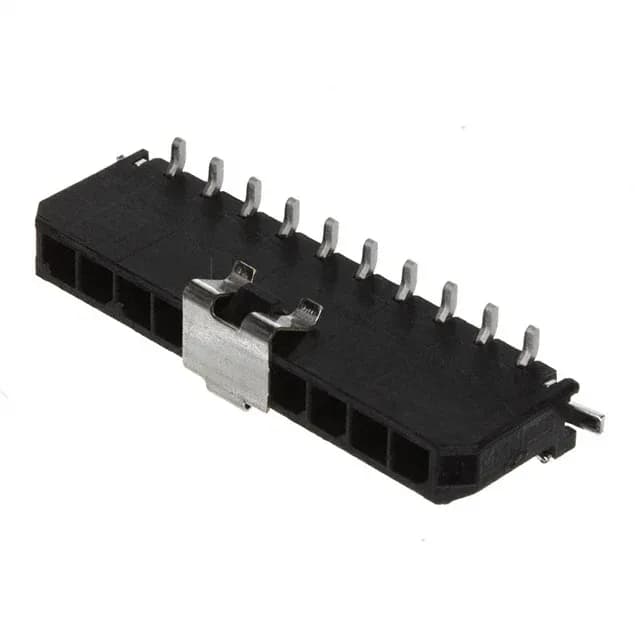

The 0436501025: The 0.118" (3.00 mm) pitch is standard across the Micro-Fit 3.0 family, so any 10-circuit Micro-Fit 3.0 receptacle housing will fit this header.
Locking Ramp Keeps the Mate Under Vibration
The header carries a locking ramp — not just a friction fit. When the mating receptacle clicks onto this ramp, the connection resists back-out from cable strain or machine vibration. For a wire-to-board assembly in a moving or panel-mounted application, that latch is the difference between a reliable connection and intermittent contact.
15 µinch Gold Mating Surface — Moderate Reconnect Duty
In a medical or telecom chassis where the board is swapped a few times over its life, this plating grade is well matched to the duty.
Surface-Mount Assembly, 17.56 mm Stack Height
This is a surface-mount header — it reflows with the board in a single pass, no wave solder step. The mated stack height is 17.56 mm, so the cable-side receptacle plus the header together occupy that z-height above the PCB. Check the enclosure clearance before committing the BOM.
