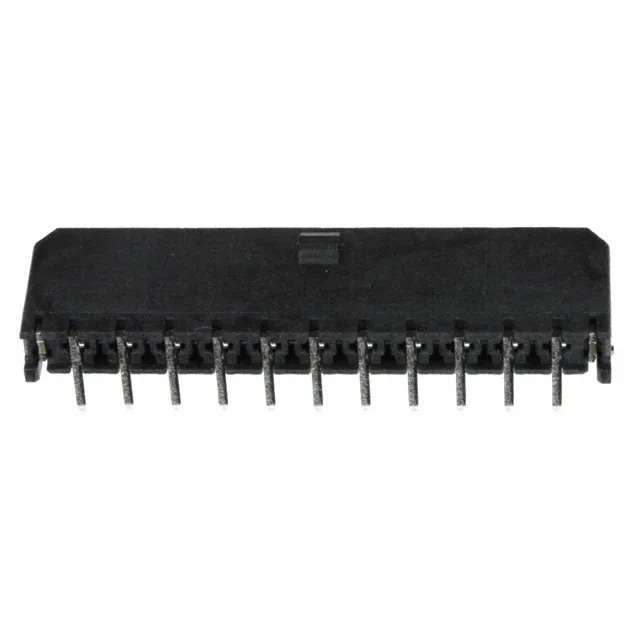

Molex Micro-Fit 3.0 43650 series, single-row header, 11 positions, 3.00mm pitch, right-angle through-hole, tin-plated male pins, shrouded 4-wall, board lock, locking ramp, UL94 V-0, tray
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 43650 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.172\" (4.37mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
The 0436501103: A shrouded 4-wall housing and locking ramp guide the mating receptacle and latch it against vibration — a half-turn loose won't happen here.
For higher cycle life, the gold-plated sibling in the series is the better pick.
Submit an RFQ for current pricing and availability; no stock-holding claim is made.
The mating pitch is 0.118" (3.00 mm).
It mates with Micro-Fit 3.0 receptacle housings and crimp terminals in a single-row, 3.00 mm pitch layout.
RoHS compliance is standard for this series; confirm with the datasheet or your compliance team.
