Housing for a High-Current Power Harness

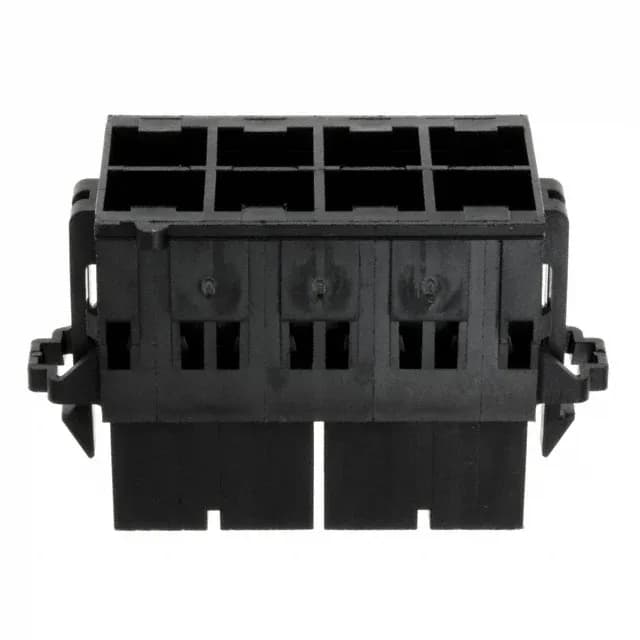

The 0439141102: The housing accepts female socket crimp terminals (sold separately — contacts are not included in this order code) and locks with a latch that gives an audible click when fully mated, holding the pair together under vibration.
What the 10.00 mm Pitch Means for the Build
At 10.00 mm between centres, this is a wide-pitch power connector. The spacing accommodates larger-gauge crimp terminals and supports higher voltage ratings.
Mating and Termination
This is a receptacle housing — it mates with the matching Mini-Fit Sr 43914-series male header (plug housing with male terminals). Termination is crimp-style: the installer selects the correct female socket terminal for the wire gauge, crimps it, and inserts it into the housing cavity until the terminal retention tang locks. The latch lock on the housing engages the header's locking ramp; the pair separates only by squeezing the latch tabs. No soldering or special tooling beyond a standard crimp frame is needed.
