8-Circuit Receptacle Housing for Micro-Fit 3.0 BMI Harnesses

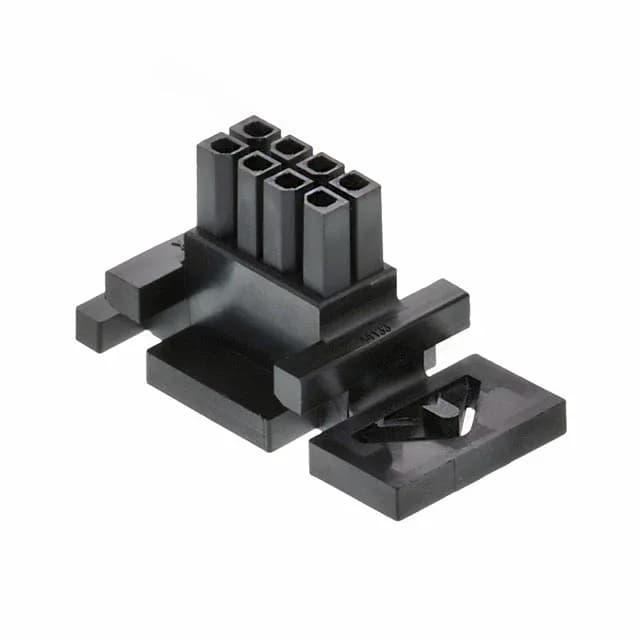

The Molex 0441330800 is an 8-position, dual-row receptacle housing from the Micro-Fit 3.0 BMI 44133 series. This is a panel-mount receptacle that accepts female socket contacts (sold separately — see note below) terminated by crimp tooling. A key feature is the blind mating capability, which allows the connector halves to self-align during rack-and-panel or enclosed-box installation where you cannot see the interface.
You must order the mating female crimp terminals separately — typically Molex Micro-Fit 3.0 female socket contacts (e.g., 0430300001 or 0430300002 series, depending on wire gauge).
This receptacle mates with the Micro-Fit 3.0 BMI male header (panel-mount or board-mount, depending on your assembly). The blind mating feature means the header side should also carry the BMI alignment geometry — standard Micro-Fit 3.0 headers without the BMI guide will not self-align. The panel mount requires a rectangular cutout; the housing snaps into the panel and the integral latch holds it in place. For a complete mated pair, order the matching BMI header and the correct crimp terminals for both sides.
If you are replacing a legacy part, verify the cavity count and keying match your existing header.
