What this housing is

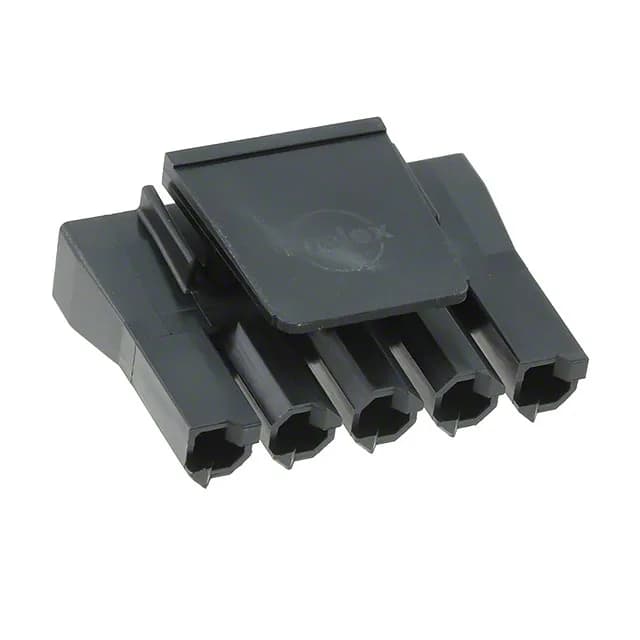

The Molex 0444412005 is the 5-position member of the Sabre 44441 series — a single-row, free-hanging receptacle housing rated 18 A per circuit at 0.295 in (7.50 mm) pitch. The contacts are not included and must be ordered separately as the matching female blade socket crimp terminal for this series.
What the ratings mean
The 18 A per circuit rating reflects the contact's current-carrying capacity in the Sabre housing — the PA/Nylon insulator governs the thermal limit of the complete assembly. At the upper operating temperature of 75 °C the connector remains within its rated thermal envelope, so no derating is required at the stated current provided the ambient does not exceed 75 °C. The latch lock fastening keeps the mating half seated in high-vibration environments typical of industrial automation and off-road equipment. The free-hanging orientation means this housing is assembled into a harness segment off the board and then mated in-line — it is not a panel-mount part. Side-to-side stacking direction tells you the primary use case is daisy-chaining multiple housings along a harness run, not board-to-board stacking. The 5-position count is the mid-range member of the series; a 2-position version handles simpler branch circuits and a natural-colour variant covers applications where the black pigment is undesirable in the end-product.
Where this class of connector is used
Sabre-series power housings are used as in-line harness connectors for industrial automation, commercial vehicle electrification, and power distribution where 18 A per circuit at robust pitch delivers a reliable connection without moving to a larger form factor. The PA/Nylon housing resists the mechanical stress of in-field service and the latch lock prevents accidental unmating under vibration.
Compliance and sourcing
The 0444412005 carries ROHS3 Compliant status. The series is listed Active; confirm the position count and the latch lock requirement against the existing BOM line before committing to the order, and specify the matching female blade socket crimp terminal as a separate line.
