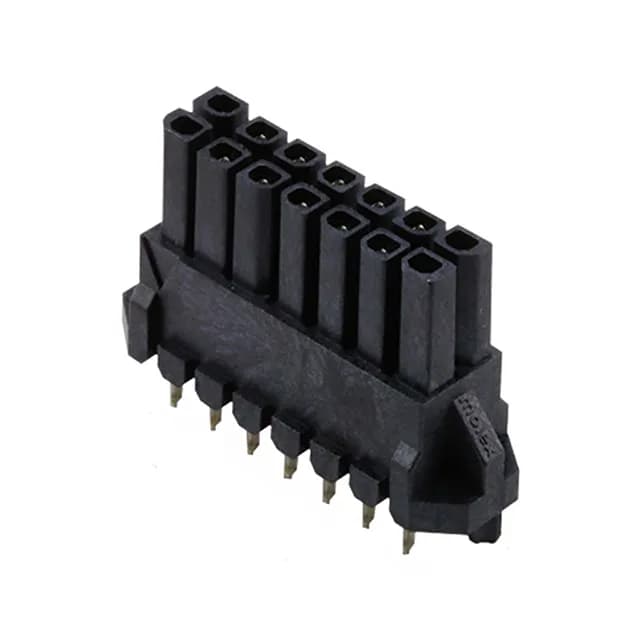

The Molex 0447691401 is a 14-circuit, dual-row receptacle from the Micro-Fit 3.0 BMI 44769 series. The housing is black, glass-filled LCP rated UL94 V-0, with tin-plated phosphor bronze contacts — 100.0 µin (2.54 µm) of tin on both the mating and post surfaces. The 3.00 mm pitch and 0.118" row spacing define the PCB footprint — the land pattern matches the standard Micro-Fit 3.0 layout, so a board laid out for any 14-circuit dual-row Micro-Fit 3.0 receptacle accepts this part without a respin. The 250 VAC voltage rating gives headroom for telecom and industrial signal rails.
Mating and Assembly
The blind mating and board guide features assist alignment during assembly in tight enclosures or blind-mate scenarios. For a complete wire-to-board interconnect, pair this receptacle with the matching Micro-Fit 3.0 crimp terminals and a header.
