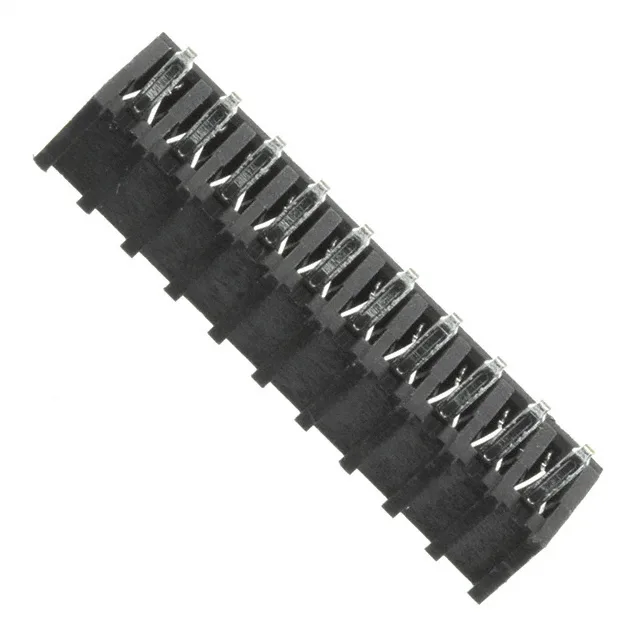

Molex 0448120010
MPN0448120010
Obsolete
$0.4200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK254, 44812 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC, 176VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass Alloy |
| Insulation color | Black |
| Insulation height | 0.177\" (4.50mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tray |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.136\" (3.46mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 200.0µin (5.08µm) |
