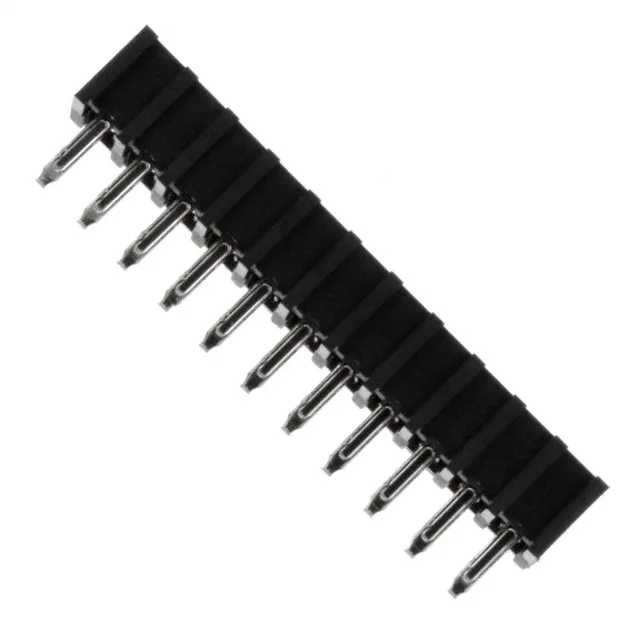

Molex KK254 44812 receptacle, order code 0448120011, 11 positions, single row, 0.100" (2.54 mm) pitch, 250 VAC, tin-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | KK254, 44812 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC, 176VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass Alloy |
| Insulation color | Black |
| Insulation height | 0.177\" (4.50mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tray |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact length - post | 0.136\" (3.46mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 200.0µin (5.08µm) |
The 0448120011 is the 11-circuit member of Molex's KK254 44812 board-to-board receptacle line. It carries tin-plated mating contacts rated 250 VAC, mounts through-hole with solder termination, and accepts a push-pull fastening interface.
The style is Board to Board, and the series is KK254, 44812.
The housing material is UL94 V-0 rated polyamide (nylon), glass filled. RoHS and REACH compliance documentation is available through the Molex product page.
