Molex 0449140801 — Pin Headers

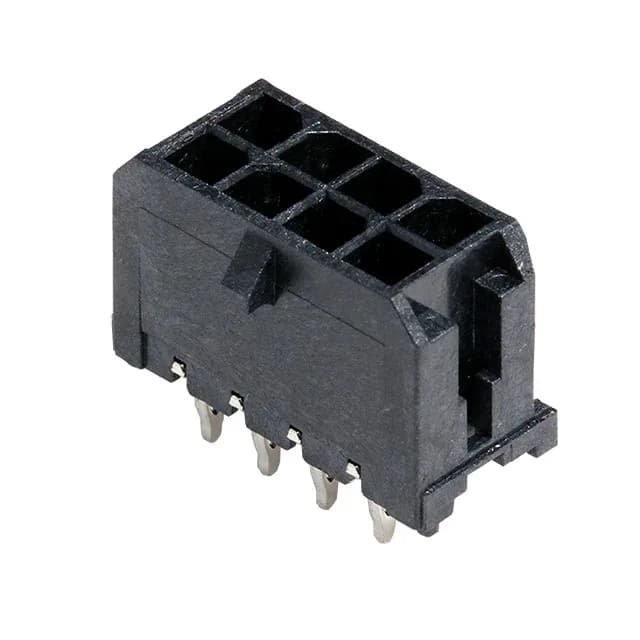

Molex 0449140801 Micro-Fit 3.0 CPI Header, 8 Pos, 3 mm

MPN0449140801
Active

Molex Micro-Fit 3.0 CPI 44914 series header, 0449140801, 8 positions, dual row, 3.00 mm pitch, male pin, through-hole press-fit, shrouded 4-wall, locking ramp, tin mating finish 200 µinch, UL94 V-0.

$3.0500Ref. price · indicative, final on quote
Molex 0449140801 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMicro-Fit 3.0 CPI 44914
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0449140801 key specifications
ParameterValue
SeriesMicro-Fit 3.0 CPI 44914
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Contact materialModified Tin/Brass Alloy
Insulation colorBlack
Insulation height0.390\" (9.91mm)
Insulation materialLiquid Crystal Polymer (LCP), Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTray

All specifications

0449140801 additional specifications
ParameterValue
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsGeneral Purpose, Medical, Military, Telecommunications
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions8
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Contact finish - matingTin
Contact finish thickness - mating200.0µin (5.08µm)

Product details

8-Position Dual-Row Header with Press-Fit Termination

The 0449140801: This is an 8-position, dual-row header from the Molex Micro-Fit 3.0 CPI 44914 series. The press-fit termination eliminates soldering, which is a common requirement for backplane and high-reliability board stacking where rework access is limited.

Mating Finish and Board Fit Details

For a connector that mates a few times during installation and then stays mated, this is a practical choice. The post finish is also tin, which is compatible with the press-fit hole plating.

Frequently asked questions

Is 0449140801 RoHS compliant?

Yes, it is ROHS3 Compliant.
