Board-to-board or cable header with blind-mate guides

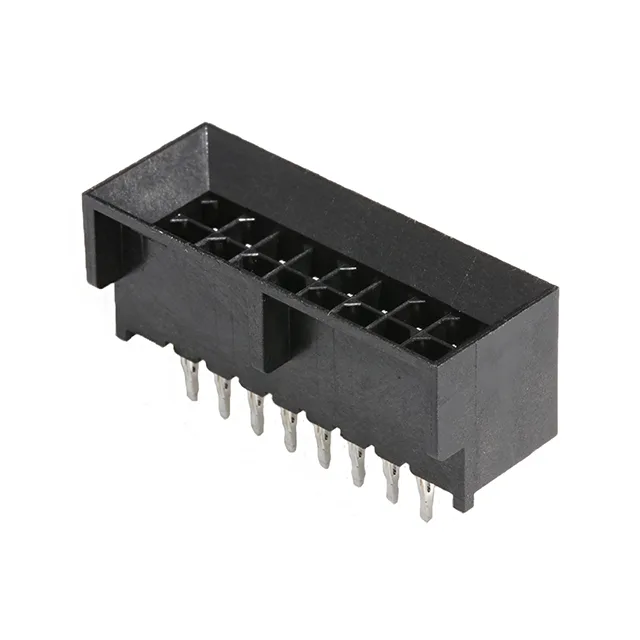

The 0452801601 is the 16-circuit, dual-row member of the Molex Micro-Fit 3.0 BMI CPI 45280 header line, styled for board-to-board or cable connections.
Molex Micro-Fit 3.0 BMI CPI 45280 header, order code 0452801601, 16 positions, dual row, 0.118" (3.00mm) pitch, tin-plated mating contacts, through-hole, press-fit and solder termination, tray packaging.
$3.6022Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-Fit 3.0 BMI CPI 45280 |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.457\" (11.60mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Features | Blind Mating, Board Guide |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Applications | General Purpose, Medical, Military, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 16 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.193\" (4.90mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 200.0µin (5.08µm) |
