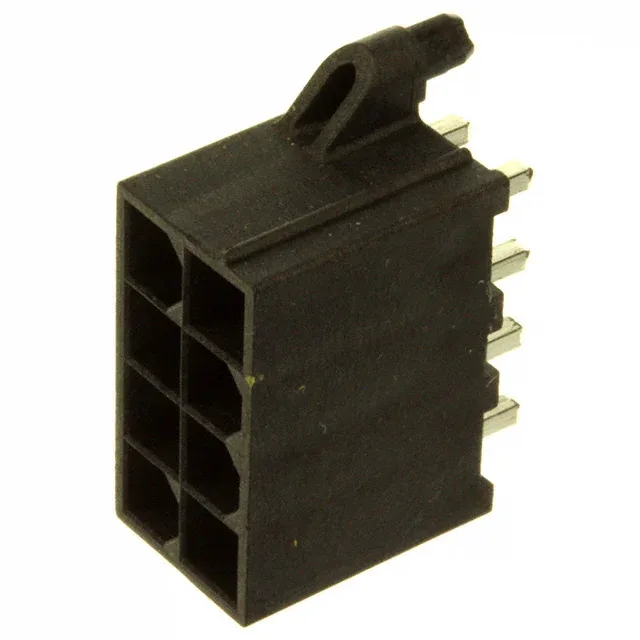

Molex 0462070008
MPN0462070008
Active
$2.0900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-Fit Jr 46207 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Features | Board Guide |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 8 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.144\" (3.66mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
