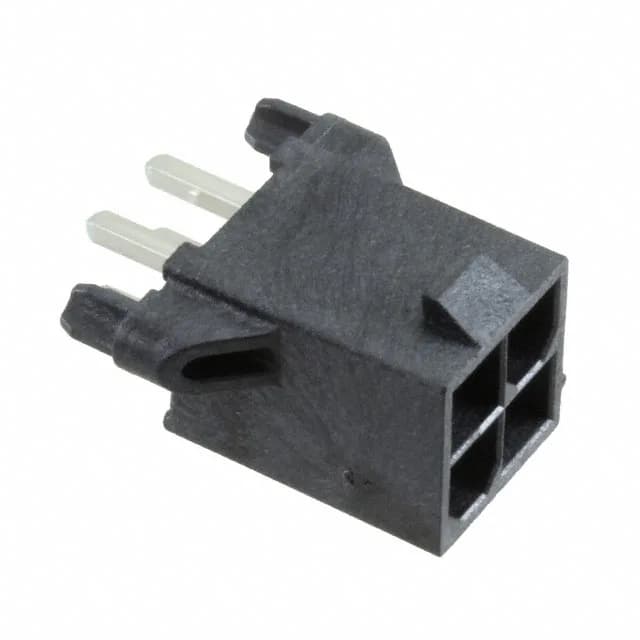

Molex Mini-Fit Jr 46207 header, 4 circuits, 4.20mm pitch, shrouded 4-wall, through-hole, locking ramp, tin-plated male pins, UL94 V-0 LCP housing.
| Parameter | Value |
|---|---|
| Series | Mini-Fit Jr 46207 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Features | Board Guide |
| Parameter | Value |
|---|---|
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 4 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.207\" (5.26mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 0462070204: Tin is suited for applications with fewer than 50 mating cycles and where the operating temperature stays below 105°C — typical for general-purpose and industrial control panels.
The pitch is 4.20mm (0.165") and the connector has 4 circuits in a dual-row arrangement. The row spacing is also 4.20mm.
Yes, it is a shrouded 4-wall header, which protects the male pins and guides the receptacle during mating.
