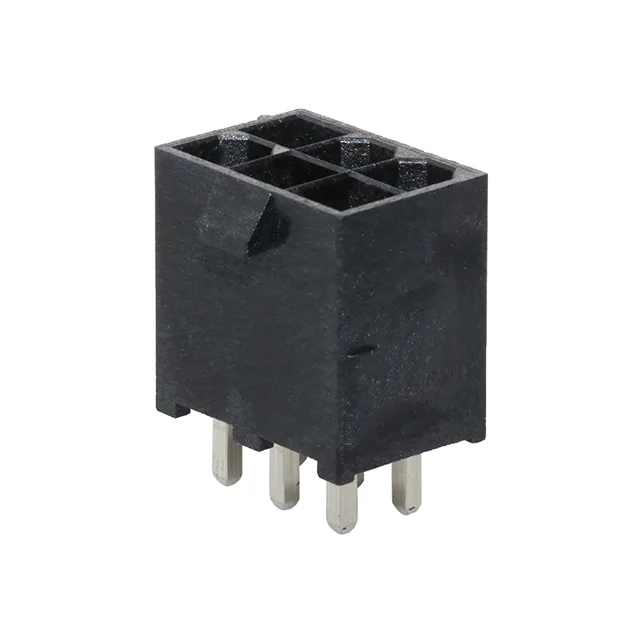

Molex Mini-Fit Jr header, order code 0462071106, 6 positions, dual row, 4.20 mm pitch, tin-plated mating contacts, through-hole, solder termination, shrouded - 4 wall, locking ramp.
| Parameter | Value |
|---|---|
| Series | Mini-Fit Jr 46207 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.535\" (13.60mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 6 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.176\" (4.46mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 0462071106 is the 6-circuit member of Molex's Mini-Fit Jr 46207 header line, a shrouded dual-row board-to-wire header with a 4.20 mm pitch. Tin-plated mating contacts, through-hole solder termination, and a locking ramp fastening type are standard across the series.
RoHS and REACH compliance documentation is available from Molex on request.
