Molex 0465629317

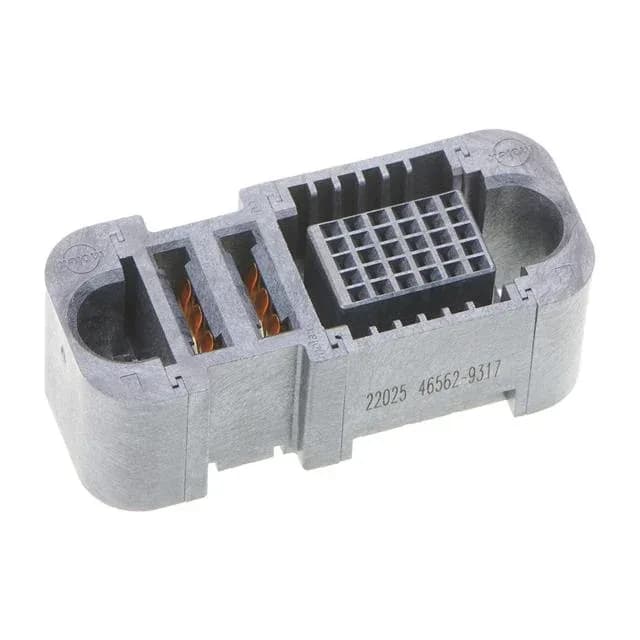

Molex EXTreme Ten60Power 0465629317, 32-pos Receptacle, 60 A

MPN0465629317
Active

Molex EXTreme Ten60Power 46562 series receptacle, 0465629317, 32 positions (30 signal + 2 power), 60 A per circuit, press-fit through-hole, gold 30.0µin (0.76µm) contact finish, 600 VAC/250 VDC, -40°C to 105°C, UL94 V-0 black housing, bulk.

$18.44Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEXTreme Ten60Power 46562
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

0465629317 specifications
ParameterValue
SeriesEXTreme Ten60Power 46562
MountingThrough Hole
Connector typeEXTreme Ten60Power
Voltage rating600VAC, 250VDC
Current rating60A
Operating temperature-40°C ~ 105°C
ColorBlack
Material flammability ratingUL94 V-0
PackageBulk
FeaturesMating Guide
TerminationPress-Fit
Contact finishGold
Positions32
Contact layout, typical30 Signal, 2 Power
Contact finish thickness30.0µin (0.76µm)

Product details

The Molex 0465629317 is a 32-position receptacle from the EXTreme Ten60Power 46562 series, combining 30 signal contacts and 2 power blades in a single black UL94 V-0 housing. It is designed for board-to-board or wire-to-board power distribution where a hybrid signal-plus-power interconnect saves board space and simplifies harness routing compared to separate connectors.

The press-fit termination tells you this is built for solderless backplane assembly — the compliant pin presses into a plated through-hole, giving a gas-tight joint that can be reworked without desoldering.

Frequently asked questions

What is the current rating of molex 0465629317?

60 A per circuit on the power contacts, with 30 signal contacts rated for lower current typical of signal duty.

Are there any equivalents to molex 0465629317?

The closest functional sibling is 465629326, a 31-position variant (30 signal + 2 power, one signal unloaded) with the same 60 A rating, press-fit termination, and 30.0 µ" gold plating. The 465629319 offers 34 positions (30 signal + 4 power).
