What this connector is

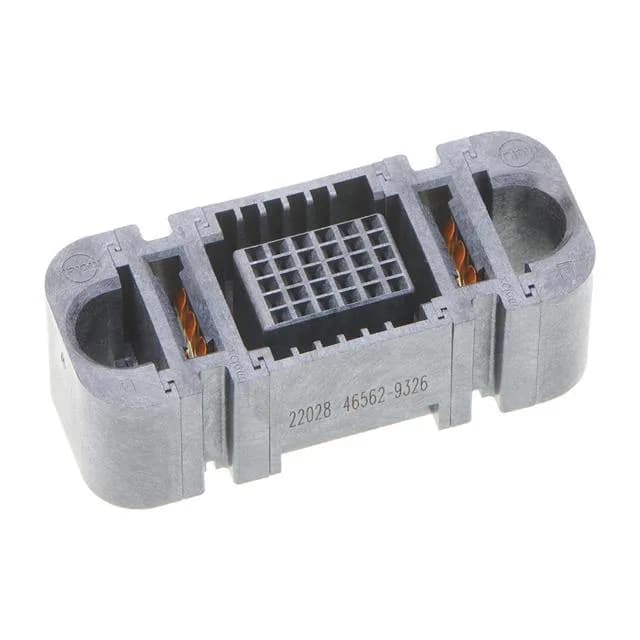

The Molex 0465629326 is a verification receptacle in the EXTreme Ten60Power 46562 series — a hybrid power/signal card-edge style connector with 31 positions split across 2 power contacts and 30 signal contacts. The 60 A current rating applies per contact, so the 2-power-position layout carries the bulk current path while the signal bank handles control and sensing. Gold-plated contacts at 30.0 µin (0.76 µm) sit behind a mating guide feature that assists alignment during field assembly.
Voltage and thermal envelope
Rated 600 VAC or 250 VDC — that dual voltage rating covers both AC mains and DC bus domains without derating. The operating range of -40°C to 105°C is wide enough for unheated cabinet environments and motor-adjacent zones, and the housing material is classified UL94 V-0, so it will not propagate flame under fault conditions.
Press-fit termination
Press-fit through-hole termination means the connector solders into the board without wave or selective solder fixturing — the compliant pin zone cold-joins the plated barrel and the mechanical interference holds it in place through thermal cycling. This is the right choice when you need board attachment without a reflow pass over the connector body.
What it mates with
This is a female receptacle (female sockets and blade sockets) — it receives the matching male card-edge blade from the EXTreme Ten60Power plug half. The contact layout of 30 signal plus 2 power defines the mating board's edge-card geometry; match the card thickness and blade width to the series spec before committing the layout. The Mating Guide feature on this verification receptacle is designed to confirm alignment before full mating — useful in test-fixture and service-bypass applications.
