Molex 0469930610 — Wire-to-Board Connectors

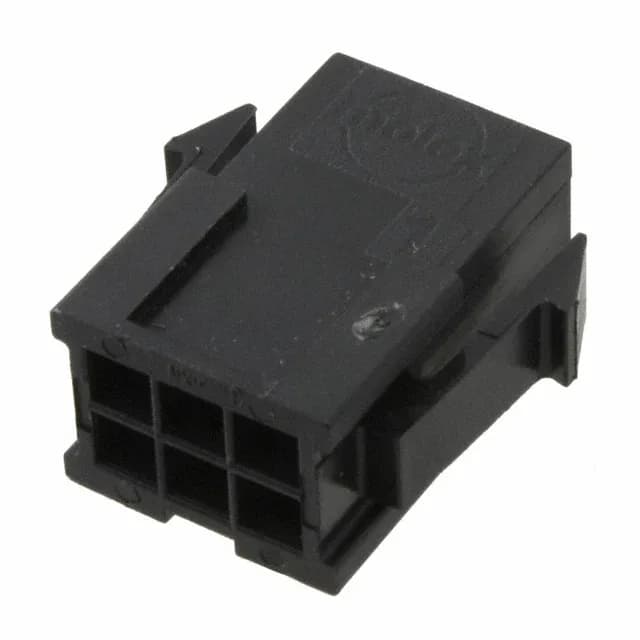

Molex Mini-Fit Jr 46993 Plug Housing 0469930610, 6 Pos

MPN0469930610
Active

Molex Mini-Fit Jr 46993 series, 0469930610, 6-position plug housing, 2-row, 0.165" (4.20mm) pitch, 0.165" (4.20mm) row spacing, panel mount snap-in, locking ramp, crimp termination, black PA nylon, -40°C to 105°C.

$0.8500Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0469930610 specifications
ParameterValue
SeriesMini-Fit Jr 46993
TypeMale Pin
MountingPanel Mount, Snap-In
Connector typePlug
Fastening typeLocking Ramp
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA), Nylon
NoteContacts Not Included
Pitch0.165\" (4.20mm)
PackageBulk
Row spacing0.165\" (4.20mm)
Rows2
Contact terminationCrimp
Positions6

Product details

6-Circuit Mini-Fit Jr. Plug Housing for Harness Assembly

The 0.165" (4.20mm) pitch and matching row spacing give it the same footprint as the rest of the Mini-Fit Jr. family, so it mates directly with the standard 46993 receptacle housings.

The 0469930610 accepts the standard Mini-Fit Jr. male crimp terminals, which are terminated to 16-24 AWG wire before being inserted into the housing cavities. The panel-mount snap-in ears let you fix the housing to a panel cutout before loading the terminals, which simplifies harness assembly in a fixture.

Rated for the Engine Bay and Industrial Cabinet

Frequently asked questions

What is the mating receptacle for 0469930610?

The 0469930610 mates with any standard Mini-Fit Jr. 46993 series receptacle housing of the same 6-circuit, 2-row configuration and 4.20mm pitch.
